CS-1005G-4P

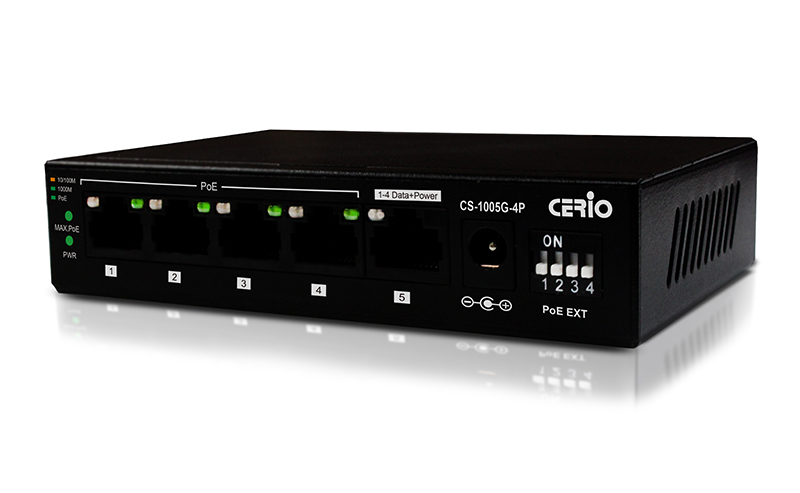

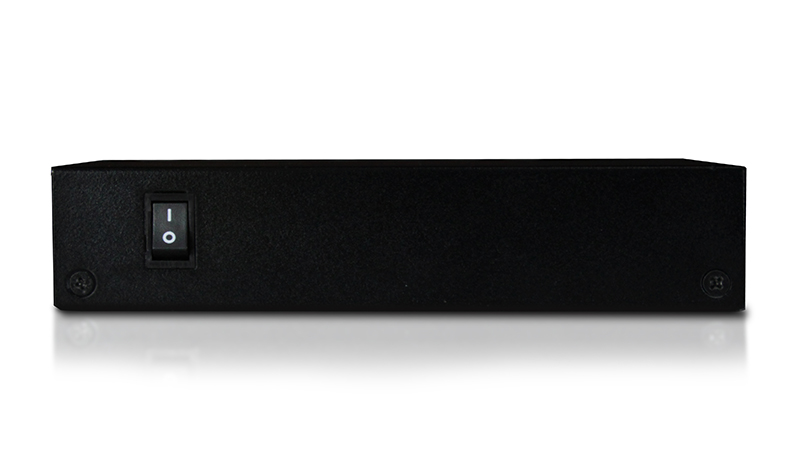

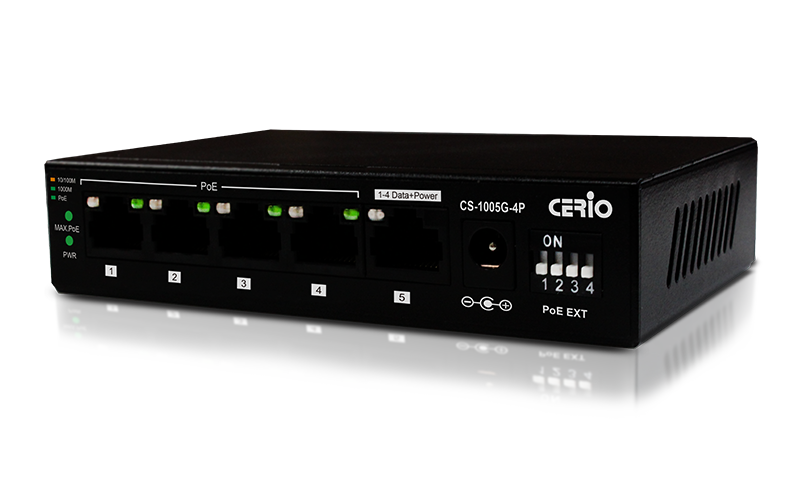

The CERIO CS-1005G-4P is a powerful and IEEE802.3af/at Power over Ethernet which provides DC 44~57V Gigabit over Ethernet cables high-performance Gigabit Ethernet switch, with all 5 ports capable of 10/100Mbps or 1000Mbps auto-negotiation operation which means the switch could automatically negotiate with the connected partners on the network speed and duplex mode. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications. Moreover, the 10/100/1000Mbps auto-sensing ability provides an easy way to migrate 10Mbps to 1000Mbps network with no pain.
This switch supports 4 Port 10/100/1000M Gigabit port Power over Ethernet (PoE+), 10Mbps speed with 802.3at 30Watt PoE+ power output over distance up to 280 meters on RJ45 UTP cable. Up to 280m PoE distance allows you to expand your network via Ethernet cable to where there is no power line or outlet but where you want to fix devices such as APs, IP Cameras or IP Phones, etc.. No longer need to worry about the complicated cables and long distance which may cost you a lot of time and money. By integrating the data transmitting cable and power cord, it eliminates the effort constructing your network. Over current protection and circuit shorting protection are also supported to ensure the safety.
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE-802.3af PoE ,IEEE802.3at PoE+
- 5 Ports 10/100/1000Mbps Auto-Negotiation Gigabit Switch, Have 4 Ports PSE/ PoE function, compliant with IEEE802.3at class4 (30Watt). IEEE- 802.3af class3 (15.4Watt); IEEE802.3af class 2 (7.5Watt) .
- Ethernet Extend Mode per port DIP switch control makes transmission distance up to 280m
- Support PoE Power Maximum 30W for share 1~4 PSE/PoE Ports, With bundle Power Adapter have 72Watt for 4 PoE port .
- Full/Half-Duplex capability on each TX port ,
- Supports Store & Forward architecture and performs forwarding and filtering
- Auto-learning networking configurations
- Supporting the flow control: back pressure for Halfduplex and IEEE 802.3x for Full-duplex modeg
- Broadcast storm control and supporting store & forward operation
- Support Jumbo Frame 9216 byte
- Non-blocking & Non-head-of-line blocking full-wire speed forwarding
- Supports TP interface Auto MDIX function for auto TX/RX swap
- Automatic Source MAC Address Learning and Aging
- Supports up to 2K MAC addresses
- Up to 1M bits buffer
Application

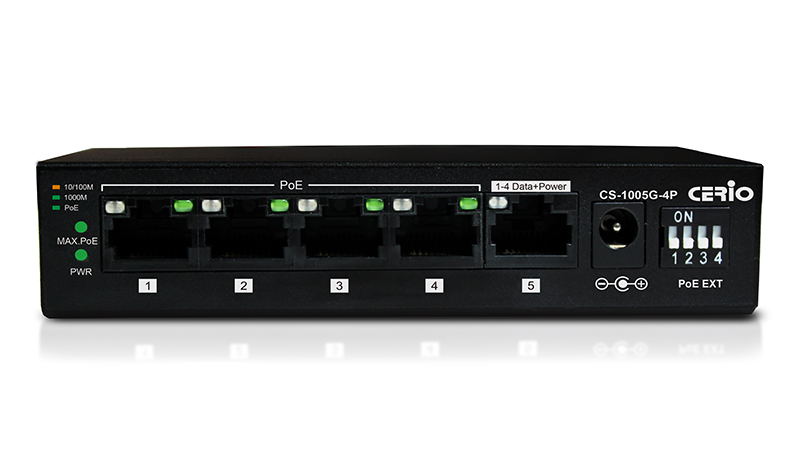

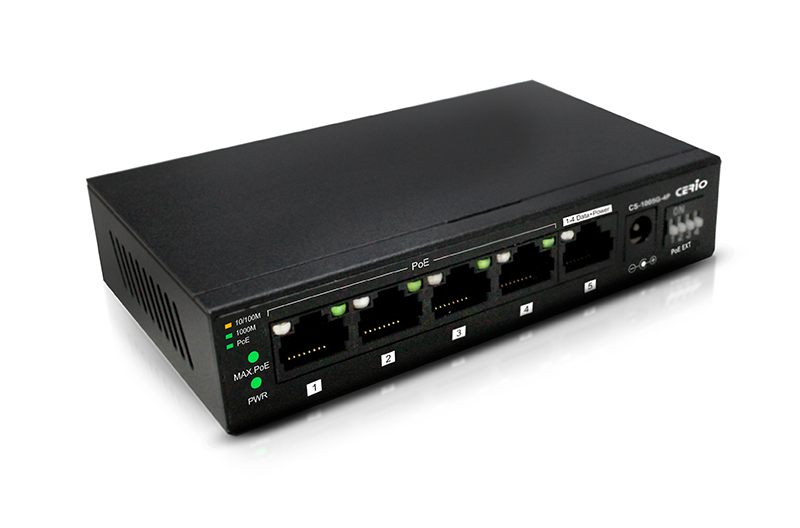

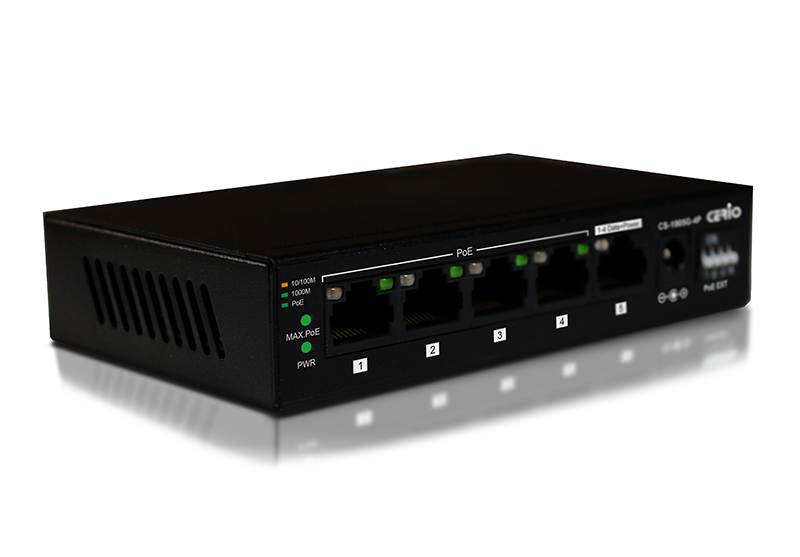

Overview
CS-1005G-4P Specifications

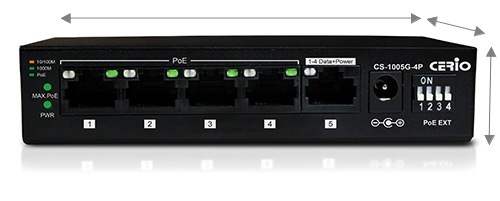

| Standards & Hardware Specifications | |
| Network Standards Conformance | IEEE 802.3 10Base-T |
| IEEE 802.3u 100Base-TX | |
| IEEE 802.3ab 1000Base-T | |
| IEEE 802.3x Flow Control | |
| IEEE 802.3af Power over Ethernet ( 15.4 Watt PoE+ ) | |
| IEEE 802.3at Power over Ethernet Plus (30Watt PoE+ ) | |
| Port Configuration | 5ports RJ-45 connectors for 10/100/1000Mbps |
| (With 4 Port Gigabit PSE/ PoE+ function ) | |
| DIP Switch | Support 10Mbps /280m transition function for PoE ports (Per port DIP switch control) |
| Media Access Protocol | CSMA / CD |
| Network Media | 10BASE –T: UTP Cat. 3 or up, |
| 100BASE-TX: UTP Cat. 5 or up, | |
| 1000BASE-T: UTP Cat. 5 or up | |
| Transmission Method | Store and Forward |
| MAC Address Table | 2K |
| Built-in Buffer | 1Mb |
| Jumbo Frame | 9K |
| Data Transfer Rate | 10/100/1000Mbps (Half-duplex), |
| 20/200/2000Mbps (Full-duplex) | |
| Auto MDI/MDIX | Yes |
| LED Indicators | Per Gigabit Port:(Link/Act): Status |
| PoE : Status | |
| Max. PoE (PoE Load greater than 70% warning) | |
| Per Unit: Power | |
| Internal Bus Speed | 10Gbps |
| Environmental & Mechanical Characteristics | |
| PoE Power Budget | 55V/1.3A for 60Watt shared for all PoE Ports (for Ports 1-4 Only ) |
| Power Consumption | 2 Watt (max. with no PoE Device connected) |
| Power Type | DC-Jack : for bundled External Power adapter |
| Power Requirement | AC 100~240 AC Power, 55V / 1.3A DC Input |
| Operating Temperature | 0° to 40° C |
| Storage Temperature | -40° to 70° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Dimensions ( W x H x D ) | 121 x 75 x 26 mm |
| Unit Weight | 0.397kg |
| Certifications | FCC, CE, RoHS-Compliant |
| Package Contents | |
| CS-1005G-4P Main Unit | x1 |
| Quick Installation Guide Booklet | x1 |
| Power Adapter | x1 |
| Warranty Card | x1 |
|
Weight：0.397KG |
|
Product Dimension for width x depth x height ：121 x 75 x 26 mm
