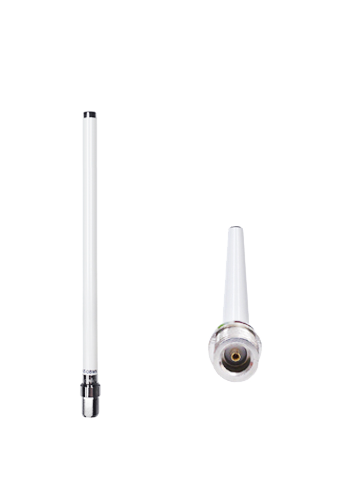

ANT-0608WN



2.4Ghz / 5Ghz Outdoor thin type Omni 6dBi / 8dBi Dual Band Pole / Wall Mount Antenna

The ANT-0608WN outdoor Dual Band 2.4Ghz / 5Ghz Omni directional 6 / 8dBi Antenna is the perfect solution for extending the range and increasing the signal strength of an outdoor wireless network. ANT-0608WN provides a 22° range E Plane coverage for point to point and point to multi -point application.

The ANT-0608WN outdoor Dual Band 2.4Ghz / 5Ghz Omni directional 6 / 8dBi Antenna is the perfect solution for extending the range and increasing the signal strength of an outdoor wireless network. ANT-0608WN provides a 22˚ range E Plane coverage for point to point and point to multi -point application.

The ANT-0608WN supports 2.4GHz/ 5GHz and provides superb performance in IEEE 802.11b/g/n Wi-Fi. ANT-0608WN includes both wall and pole mounting kits with an integrated N Female connector. All materials are considered good in water tightness and prevention of rust characteristics. All CERIO products pass a strict test, and satisfy professional user product needs.

Features
  • High gain 2.4GHz : 6dBi / 5Ghz : 8dBi
  • 22˚ Width-E Plane coverage
  • High performance
  • Fiberglass material
  • Light-weight
  • Waterproof design
  • Simple and easy installation

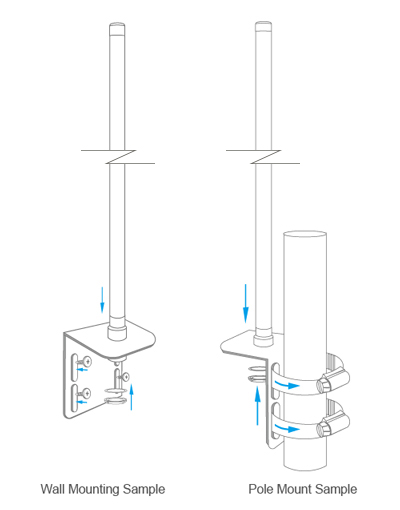

  • Provide Both Pole Mount and Wall Mount function

Size：250 * 13 (L *W) mm 13mm Diameter (max)

Weight：68g

Specifications
Antenna Type Indoor / Outdoor Omni Antenna
Frequency Range  2.4 ~ 2.5GHz ，5.1 ~ 5.7Ghz  Dual Band
Network Specification  Wireless 2.4Ghz Network IEEE 802.11ac/a/an/bgn MIMO
Gain 2.4Ghz : 6dBi / 5Ghz : 8dBi
V.S.W.R < 1.5
Beam Width-H Plane  360˚
Beam Width-E Plane  22˚
Polarization Vertical (Linear)
Input Impedance 50 Ohms
Connector N-Type Female
Form Factor  Wall Mount and Pole Mount
Rated Wind Velocity 150Km / Hour
Operation Temperature  -20˚C – + 70˚C
Storage Temperature  -30˚C – + 80˚C
Humidity 95% maximum (non-condensing)
Product Dimension  Antenna : 250 * 13 (L *W) mm    13mm Diameter (max)
With Wall Mount Bracket : 304*55 (L *W) mm
Weight 68g ( With Wall Mount Bracket : 161g)
Package Content
ANT-0608WN Antenna Main Unit x1
Pole / Wall Mount kit x1
Quick Installation Guide Booklet x1
Warranty Card x1
