5GHz 1×1 Outdoor Directional Panel 23dBi Pole Mount Antenna

ANT-23AN-P provide 10° for H Plane and 10° E Plane long distance coverage for point to point application.

ANT-23AN-P provide 10˚ for H Plane and 10˚ E Plane long distance coverage for point to point application. The ANT-23AN-P supporting 5.1 to 5.9 GHz and provides superb performance in IEEE 802.11a/n WiFi, Includes mounting kit with an integrated N Female connector. All materials are all to consider good of water tightness and prevention rust of characteristic, and the products all pass a strict test, satisfy professional user for product need.


  • High gain: 23dBi
  • 10˚ Width-E Plane and 10˚ Width-E Plane coverage
  • High performance
  • Fiberglass material
  • Light-weight
  • Waterproof design
  • Easy installation for adjustable down / up wall mount design
  • Provide Pole Mount function

Size:373 * 373*15 (L * W * H)mm


Antenna Type Outdoor Directional Panel Antenna
Frequency Range  5.1 ~ 5.9GHz
Network Specification  Wireless 5Ghz Network IEEE 802.11n , IEEE 802.11a
Antenna Type 23dBi
V.S.W.R ≦1.5
Beam Width-H Plane   10˚
Beam Width-E Plane   10˚
Polarization Vertical (Linear)
Input Impedance 50 Ohms
Connector N-Type Female

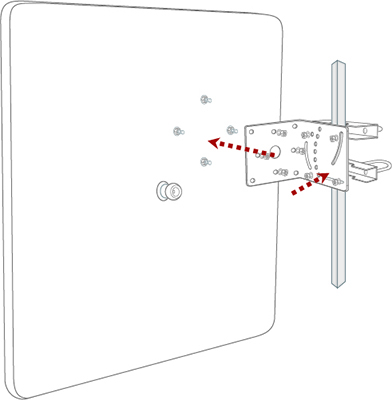

Form Factor  Pole Mount ( U-Clamps )
Adjustable range 0-30˚ adjustable wall mount design
Operation Temperature   -50˚C – + 85˚C
Storage Temperature   -50˚C – + 85˚C
Humidity 5~90% maximum (non-condensing)
Dimension  373 * 373 *15 mm ( L x W x H )
Weight 985g
Package Content
ANT-23AN-P Antenna Main Unit x1
Pole Mount kit x1
Quick Installation Guide Booklet x1
Warranty Card x1
