OW-400 A3

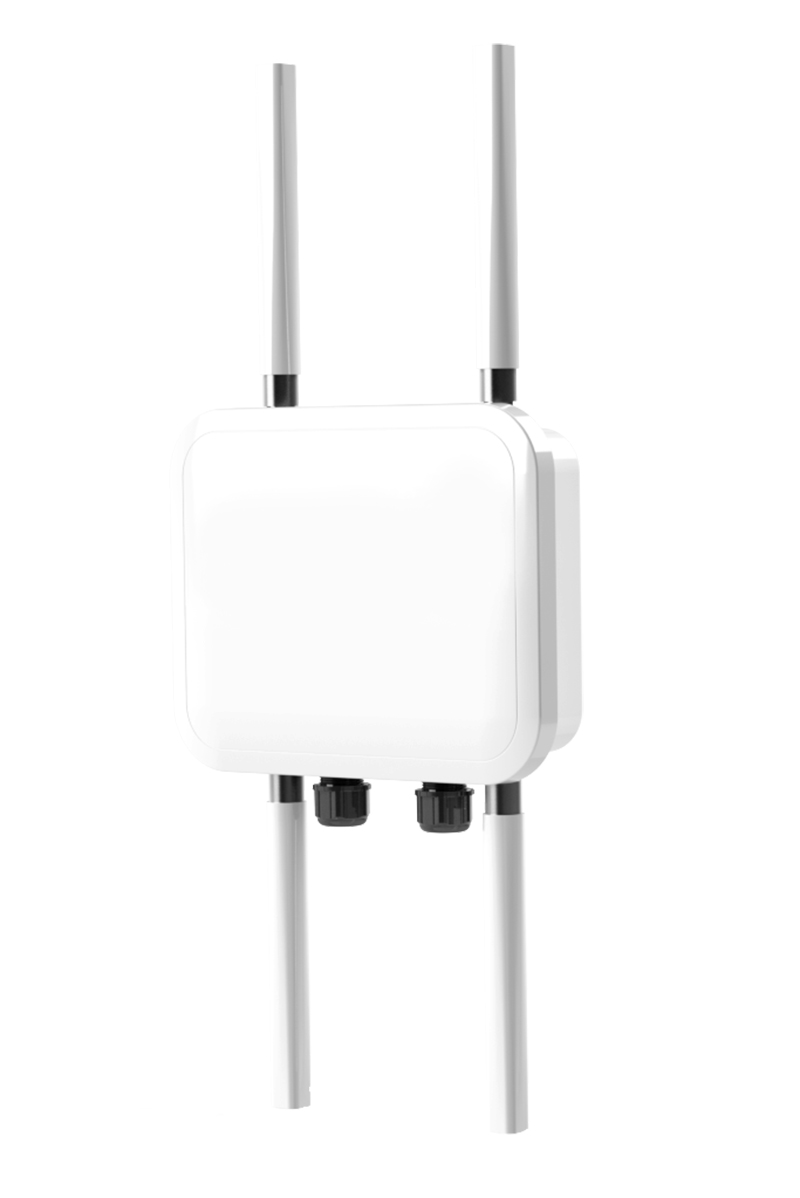

Wave2 4x 11N/ac 2.4/5Ghz 2×2 External-ANT Outdoor Access Point

CERIO’s OW-400 A3 eXtreme Power AC1300 Wave2 4X 11N/ac 2.4/5Ghz 2×2 External-ANT Outdoor Access Point is a dual band outdoor AP that combined superior functionality with an elegant and highly durable housing design. This 11ac outdoor concurrent dual band access point with latest MU-MIMO technology for improvements in the speed, reliability and quality of wireless communications, provides wireless 4 channel (4x speed) simultaneous operation in both 2.4GHz and 5GHz wireless coverage for maximum flexibility. It supports a maximum throughput of 1300Mbps, up to 400Mbps on the 2.4GHz frequency band and 867Mbps on the 5GHz frequency band.

Fast and flexible installation
Choose the right installation option for your application environment

CenOS 5.0 Centralized platform management

Intelligent control and automatic configuration and setting of multiple wireless base stations in the core group

Support AP with WDS mode / WDS mode / Client Bridge + Universal Repeater mode and WISP/CPE Repeater +AP mode

OW-400 A3 utilizes an 300mW high power design with four external N-Type antenna connectors. Two of the N-Type connectors are assigned to the 2.4GHz band and two are assigned to the 5GHz band. This device is powered through 802.3at Power over Ethernet, allowing both power and data to be provided through CAT5 cabling. OW-400 A3’s also supports fast wireless roaming 802.11r/k protocol for seamless roaming and smart client handoff.

OW-400 A3’s high performance and IP68 weather-proof durable design are made to withstand harsh environment deployment. It’s perfect for deployment in enterprise, government, public environments, and WISP application. This provides product durability and user peace of mind when deploying wireless devices in outdoor environments.

Highlight Features

  • 2.4GHz band supports wireless standard 802.11bgn protocol with maximum data transfer rate of 400Mbps.
  • 5GHz band supports wireless standard 802.11an/ac protocol with a maximum data transfer rate of 867Mbps.
  • 300mW at 2.4GHz and 5GHz Output eXtreme High Power design.
  • Support 4 external N-Type connectors , two of the N-Type connectors are assigned to the 2.4GHz band and two are assigned to the 5GHz band.
  • Supports CenOS 5.0 Software.
  • Operation Modes : Access Point Mode (includes
    Hotspot Portal Authentication, Pure AP Mode, and AP + WDS Mode), Control Access Point Mode (Centralized AP Management), Client Bridge + Repeater Mode, and WISP / CPE Repeater Mode.
  • IEEE 802.3at Power over Ethernet supported.
  • Built in 802.1x RADIUS authentication server and supports up to 50 User Accounts.
  • Provide customizable login and logout Captive portal page by Web Page.
  • Weather-proof Housing (IP68 Approved).
  • Built-in OAuth2.0 Facebook / Google account and support advanced features to create OAuth2.0 new service provider.
  • CenOS 5.0 Control Access Point Mode (CAP) supports centralized management of up to 64 AP devices.
  • With AP mode supports at total of 32 Multiple-ESSIDs per device (16 ESSID on 2.4Ghz and 16 ESSID on 5Ghz).
  • With AP mode supports x8 WDS per Radio (2.4Ghz band WDS x8 and 5Ghz band WDSx8 ) for a total of 16 WDS Links.



Software Features

  • Supports built-in 802.1x RADIUS authentication server account database for small and medium environments, removing the need to set up external server and avoiding additional costs. Also supports RADIUS Server authentication server account features to fit the needs of large-scale network environments.
  • Built-in Time Policy function can set multiple times schedule apply to RF on/off and IP/MAC filter or other security function.
  • Captive Portal Authentication supports by remote RADIUS server, Local account, third-party OAuth2.0, LDAP (AD), POP3, Guest and remote bulk MAC Address.
  • Wireless AP group management – Automatic configuration and setting of intelligent control of AP.
  • Each SSID supports 802.1q VLAN Tag standards, supporting up to 4096 group VLAN Tag capability.
  • With AP mode supports WPA-PSK/TKIP,WPA-802.1x /TKIP, 802.11i WPA2-PSK/CCMP/AES,WPA2 (802.1x/CCMP / AES), No. of registered RADIUS servers: 1.
  • QoS(Quality of Service) for bandwidth management and traffic prioritization and supports network.
  • Users Upload/Download Bandwidth Control speed limits, and User Device (Total) bandwidth control. Administrators can regulate the limit of each network user.
  • Supports IEEE802.11f IAPP and IEEE802.11r and IEEE802.11k Fast Roaming.
  • Support Band steering technology to automatically switch between frequency bands. When using dualband network cards with 802.11ac, users can always automatically connect to 5Ghz Radio.
  • Support Ping Watchdog function, which automatically monitoring device operations and reboots the device before a crash can occur.
  • Supports Location Tracking function, which can provide the wireless user’s distance location information to the database for analysis.
  • Software Web UI supports auto reboot setting function. Software setting allows automatically reboot by Daily/Weekly/Monthly settings.
  • Supports intelligent auto channel scanning function, automatic scanning the most undisturbed and suitable wireless channel in the field environment, which is convenient and time-saving.
  • Administrative Access : Supports Telnet and SSH.
  • Provides Traffic Monitor and Graphical GUI Status Interface for Network and Radio Overview.

Hardware Features

  • Supports 2.4GHz/5GHz dual-band and the maximum transmission rates are 400/867Mbps respectively while operating up to1300Mbps.
  • Supports 300mW at 2.4GHz/5GHz Output eXtreme High Power design.
  • Supports 2 10/100/1000Mbps Gigabit Ethernet Port and ETH1 port supports PoE function.
  • IEEE 802.3at Power over Ethernet supported.
  • Support 4 external N-Type connectors , two of the N-Type connectors are assigned to the 2.4GHz band and two are assigned to the 5GHz band.
  • With IP68 weather-proof durable design are made to withstand harsh environment deployment.
  • Integrates a long-range power amplifier and high sensitivity receiver to deliver unmatched reliability and performance at large coverage application.
  • ESD protection (Electro Static Discharge): Conductive: 4KV ; Air: 8KV.
  • Complying with Open Circuit Voltage and Short Circuit Current hardware standard design.
  • Pressure vent (prevents internal condensation).

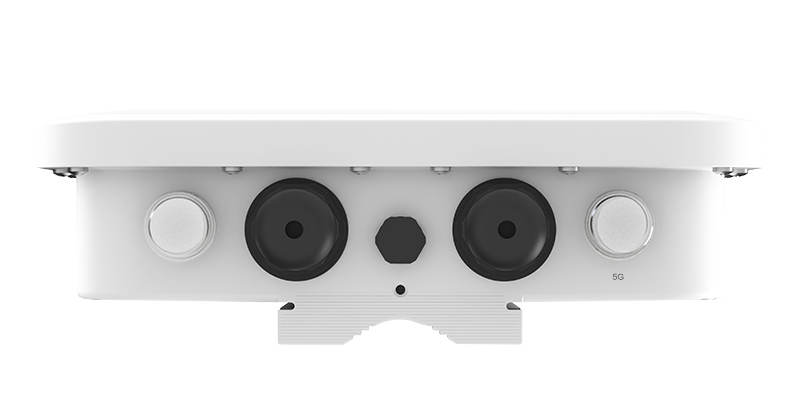

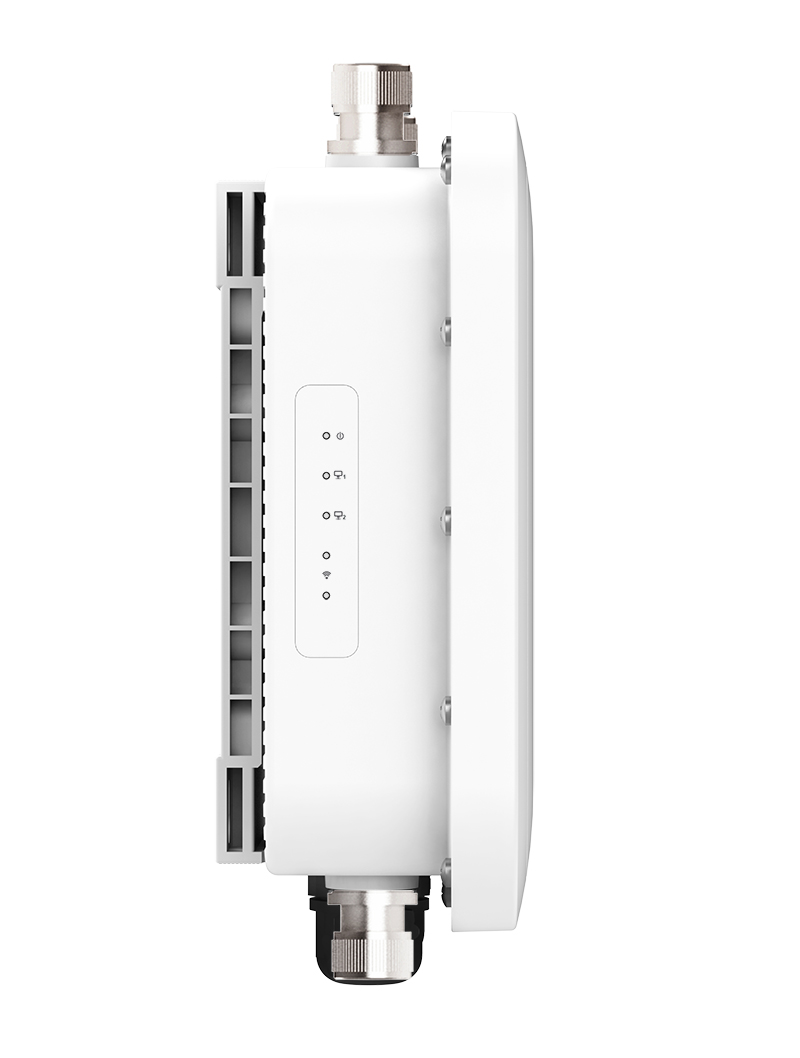

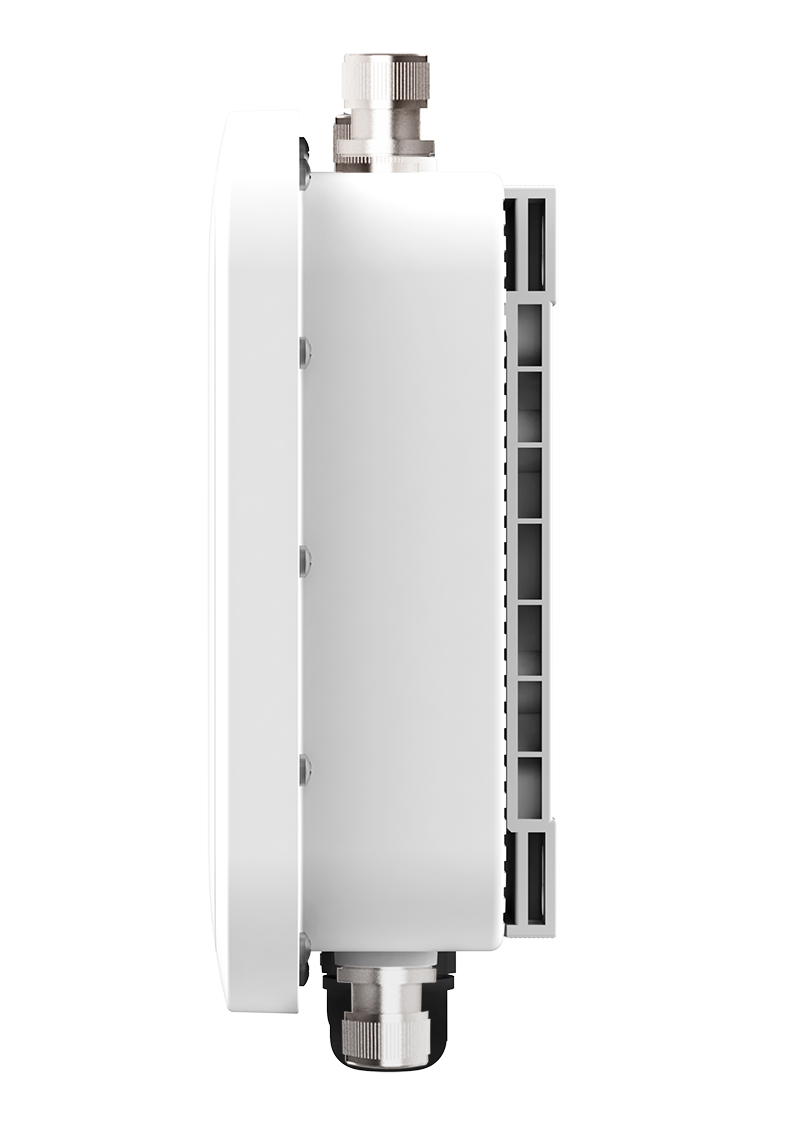

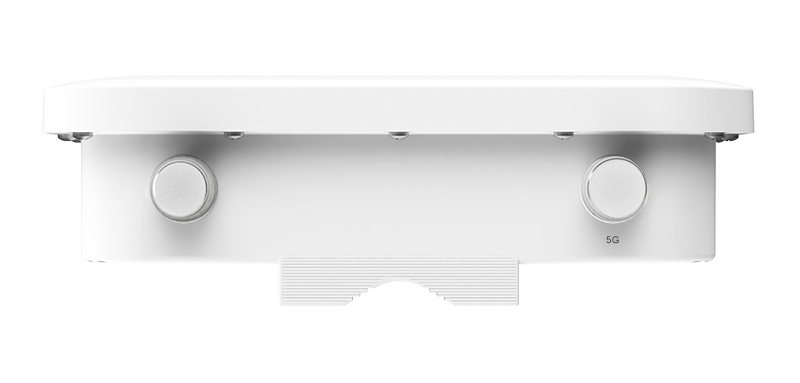

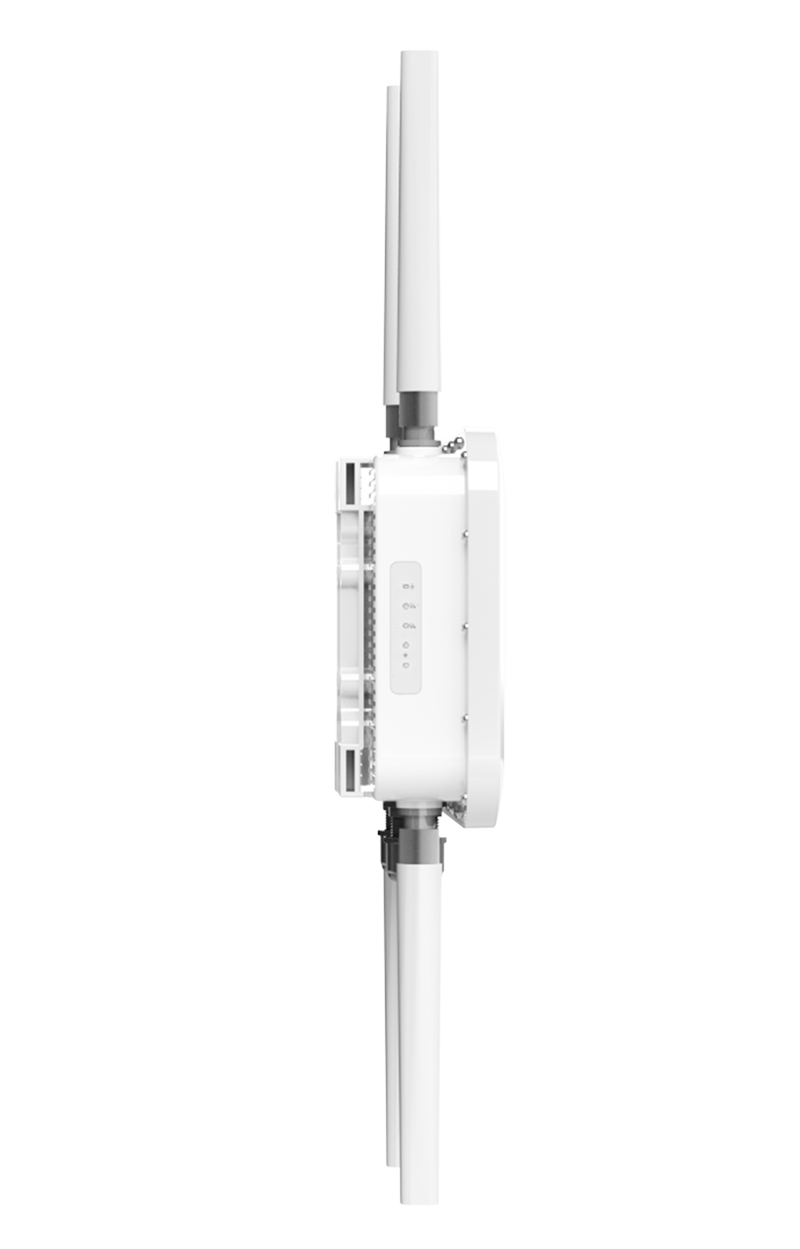

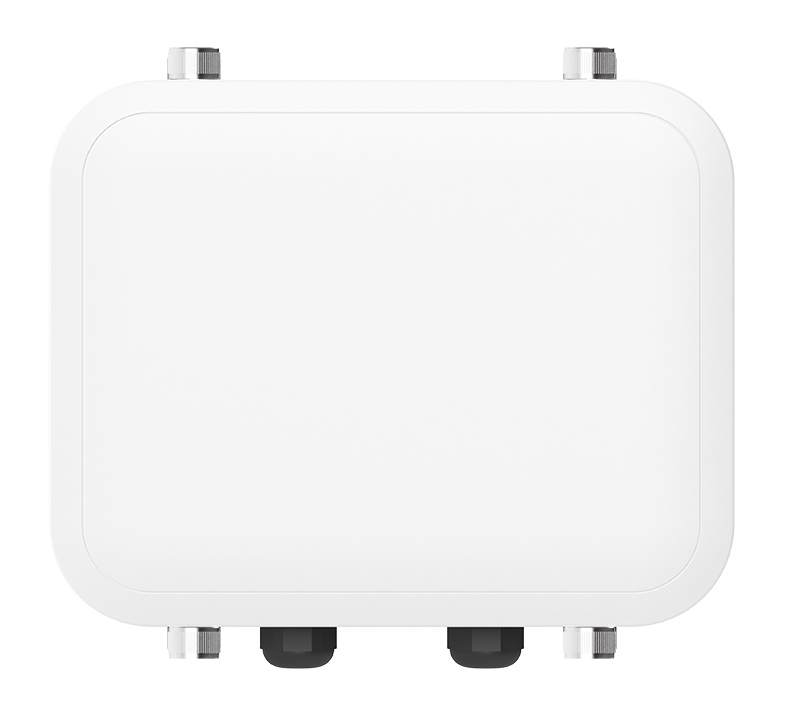

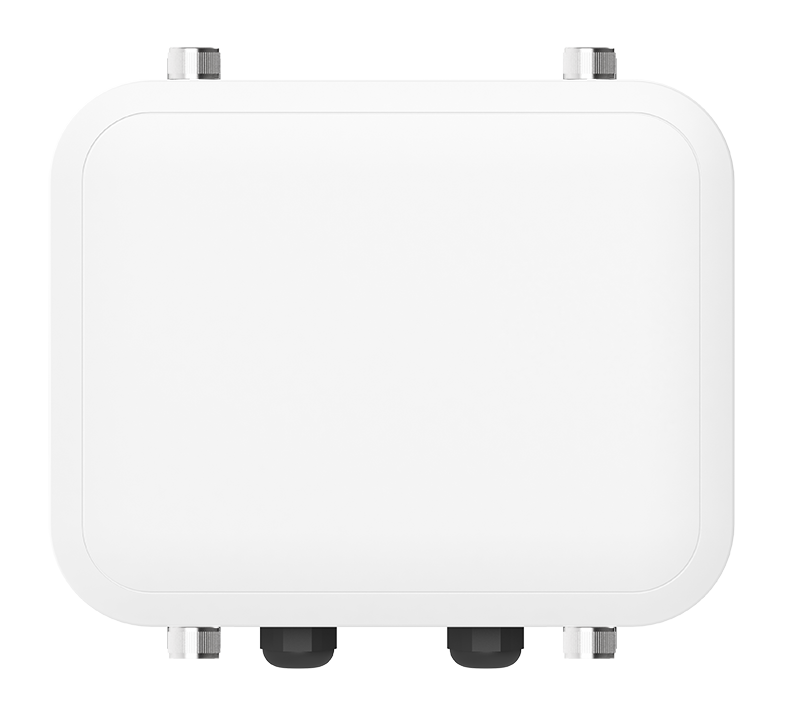

Hardware Overview



Mounting Application

     Pole Mounting



     Wall Mounting

    Adjustable Wall Mounting (adjustable mounting bracket set OW-PKUR) , OW-200 A1 and OW-408 A1 models are optional

    Adjustable Pole Mounting (adjustable mounting bracket set OW-PKUR) , OW-200 A1 and OW-408 A1 models are optional

Application Software
OS System Compatible edition Cerio CenOS 5.0 Software Core
Specificatios
 Network Standards Conformance IEEE802.11 b/g/n/a/ac compliant
IEEE802.3 / IEEE 802.3u
IEEE802.3af/at Power Over Ethernet compliant
IEEE802.11Q VLAN
IEEE802.11r/IEEE802.11k Fast Roaming
IEEE802.11e WMM
IEEE802.1x RADIUS
Ethernet Configuration RJ45 10/100/1000M Ethernet Port Connector x2
(ETH1: Power over Ethernet 802.3at PoE in )
LED Indicators PWR (Power) x1
ETH1 (PoE In) x1
ETH2 x1
2.4G Signal x1
5G Signal x1
Wireless Specifications
Data Transfer Rate IEEE802.11b : 1 / 2 / 5.5 / 11Mbps (auto sensing)
IEEE801.11g : 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54Mbps
IEEE802.11n : 400Mbps (@ 40MHz 256QAM)
IEEE802.11ac : 867Mbps(@ 80MHz 256QAM)
Frequency Range IEEE802.11nbg : Supports 2.412 ~ 2.472 GHz
IEEE802.11a/an/11ac : Supports 5.180 – 5.240 & 5.725 – 5.825 GHz
Channel Spacing IEEE802.11b/g/n : 20/40MHz
IEEE802.11ac: 20/40/80MHz
Media Access Protocol CSMA / CA with ACK
Modulation Method IEEE802.11b : DSSS (DBPK,DQPSK,CCK)
IEEE802.11a/g : OFDM(64-QAM,16-QAM,QPSK,BPSK)
IEEE802.11n : OFDM (256-QAM, 64,-QAM, 16-QAM,QPSK,BPSK)
IEEE802.11ac : OFDM (256-QAM, 64,-QAM, 16-QAM,QPSK,BPSK)
Operating Channels 2.4GHz : 1-13
5GHz : 36-64, 100-140, 149-165
(Depends on configured regulatory domain)
Transmit Power Variation 2.4Ghz :  Max : 24 ± 1 dBm

5Ghz :  Max : 24 ± 1 dBm
Receiver Sensitivity 2.4Ghz : Max : -96 dBm
5Ghz : Max : -92 dBm
Environmental & Mechanical Characteristics
Operating Temperature -20 °C ~ 65 °C
Storage Temperature -30 °C ~ 80°C
Operating Humidity 10% – 95% Non-Condensing
Storage Humidity 10% – 95% Non-Condensing
Antenna 4 N-Type Connectors for external antennas
(2 N-Type Connectors for 2.4GHz band)
(2 N-Type Connectors for 5GHz band)
Vent Automatically adjustable Vent design
Form Factor Supports both Pole / Wall Mounting installed using a
provided Mounting Bracket. With IP68 Rating
ESD Conductive: 4KV
Air: 8KV
Surge Protection L to L: 1KV
L to G: 4KV (EN61000-4-5)
System Power Consumption 14Watt (Max)
Power Supply Supports Power Over Ethernet ( POE 48~57V)
Input Power IEEE802.3at 48~57V PoE In
Dimensions ( W x H x D ) 252 x 200 x 78 mm
Unit Weight 1.3kg
Production Location TW
Certifications CE, FCC, NCC, ROHS Compliant



Package Content
OW-400 A3 Main Unit x1
PoE Power supply Kit x1
Wall/Pole Mounting Bracket Set x1
Adjustable Mounting Bracket Set (OW-PKUR) x1
Quick Installation Guide(Chinese/English) x2
Warranty Card x1
