OW-500 A1

eXtreme Power Wave2 4X 2×2 +18dBi Tri-Band Outdoor Bridge/AP

CERIO’s OW-500 A1 eXtreme Power Wave2 4X 2×2 +18dBi Tri-Band Outdoor Bridge/AP provides superior functionality with an elegant and highly durable housing design. It’s a concurrent Tri-Band access point with the latest MU-MIMO Wave2 technology for improvements in the speed, reliability and quality of wireless communications, provides wireless 4 channel (4x speed) simultaneous operation in 2.4GHz, 5GHz(Radio1)and 5GHz(Radio2) wireless coverage for maximum flexibility. It supports a maximum throughput of 2.2Gbps, up to 400Mbps on the 2.4GHz frequency band and 867Mbps are on the 5GHz(Radio1) and 5GHz (Radio1)frequency band. In addition to the multi-radio AP Station(Access Point) that can be for more wireless client, It is also best for long-distance point-to-multipoint wireless deployment. A 5Ghz Radio can be used to bridge the upper WiFi connection while reconnecting. With another 5Ghz Radio to the down WiFi bridge connection, it can easily complete a one-to-many bridge and then bridge for long distance transmissions.

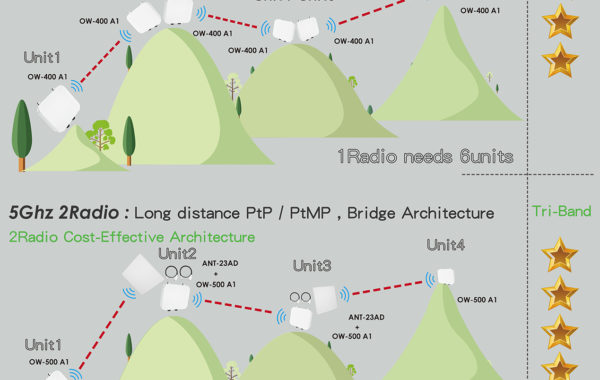

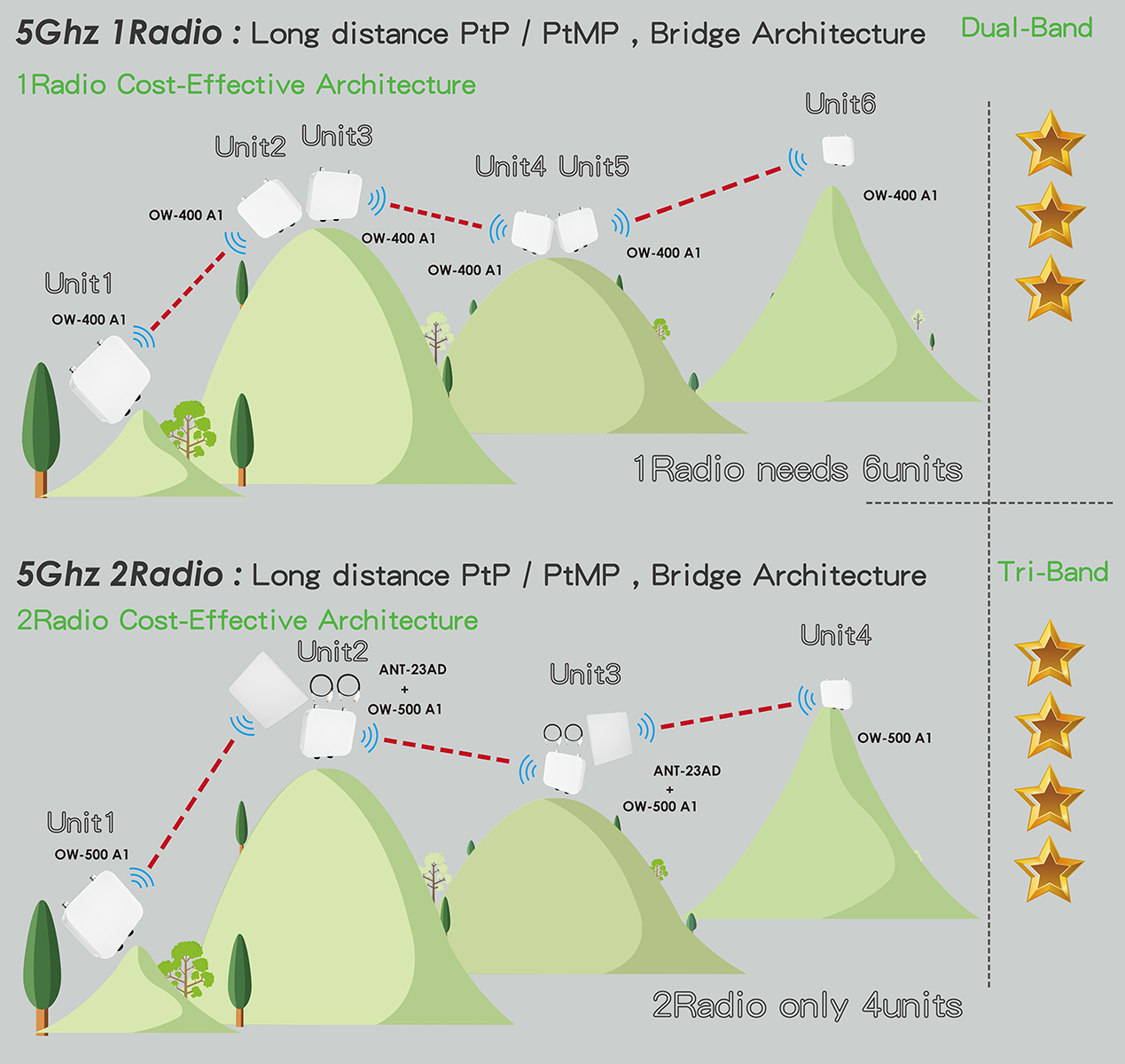

Tri-Band vs. Dual-Band

Application architecture and benefits

Fast and flexible installation
Choose the right installation option for your application environment

CenOS 5.0 Centralized platform management

Intelligent control and automatic configuration and setting of multiple wireless base stations in the core group

Support AP with WDS mode / WDS mode / Client Bridge + Universal Repeater mode and WISP/CPE Repeater +AP mode

OW-500 A1 provides IP68 weather-proof durable design and supports built-in 2×2 18dBi 5GHz directional panel antenna and 2×2 5dBi 2.4GHz High-Gain Omnidirectional antenna and two external N-Type antenna connectors are assigned to the 5GHz band. OW-500 A3’s high performance and durable design are made to withstand harsh environment deployment. It perfect for deployment in enterprise, public environments and provides reliability for dense user environments.

OW-500 A1’s bundle with CenOS 5.0 Software core, Control Access Point Mode (CAP) supports centralized management of up to 64 AP devices. It’s also supports fast wireless roaming 802.11r/k protocol for seamless roaming and smart client handoff.

Highlight Features

  • 2.4Ghz band supports standard 802.11 bgn protocol with maximum data transfer rate of 400Mbps.
  • 5GHz(Radio1) and 5GHz(Radio2) bands supports IEEE 802.11 an/ac each with a maximum data transfer rate of 867Mbps.
  • 300mW at 4GHz/5GHz/5GHz Output eXtreme High Power design.
  • Supports 2.4/5/5GHz concurrent Tri-Band function.
  • Built in 18dBi 2×2 5GHz Directional Panel Antenna and and 5dBi 2.4GHz High-Gain Antenna.
  • Support 2 external N-Type connectors are assigned to the 5GHz band.
  • Supports CenOS 5.0 Software.
  • Operation Modes : Access Point Mode (includes Hotspot Portal Authentication, Pure AP Mode, and AP + WDS Mode), Control Access Point Mode(Centralized AP Management), Client Bridge + Repeater Mode, and WISP / CPE Repeater Mode.
  • IEEE 802.3at Power over Ethernet supported.
  • Built in 802.1x RADIUS authentication server and supports up to 50 User Accounts.
  • Provide customizable login and logout Captive portal page by Web Page.
  • Weather-proof Housing (IP68 Approved).
  • Built-in OAuth2.0 Facebook / Google account and support advanced features to create OAuth2.0 new service provider.
  • CenOS 5.0 Control Access Point Mode (CAP) supports centralized management of up to 64 AP devices.
  • With AP mode supports at total of 48 Multiple-ESSIDs per device (16 ESSID on 2.4GHz Radio0 , 16 ESSID on 5GHz Radio 1 and 16 ESSID on 5GHz Radio 2).
  • With AP mode supports x8 WDS per Radio (2.4GHz Radio0 band WDS x8 and 5Ghz Radio1 band WDSx8 and 5Ghz Radio2 band WDSx8 ) for a total of 24 WDS Links.

Software Features

  • Supports built-in 802.1x RADIUS authentication server account database for small and medium environments, removing the need to set up external server and avoiding additional costs. Also supports RADIUS Server authentication server account features to fit the needs of large-scale network environments.
  • Built-in Time Policy function can set multiple times schedule apply to RF on/off and IP/MAC filter or other security function.
  • Captive Portal Authentication supports by remote RADIUS server, Local account, third-party OAuth2.0, LDAP (AD), POP3, Guest and remote bulk MAC Address.
  • Wireless AP group management – Automatic configuration and setting of intelligent control of AP.
  • Each SSID supports 802.1q VLAN Tag standards, supporting up to 4096 group VLAN Tag capability.
  • With AP mode supports WPA-PSK/TKIP,WPA-802.1x /TKIP, 802.11i WPA2-PSK/CCMP/AES,WPA2 (802.1x/CCMP / AES), No. of registered RADIUS servers: 1.
  • QoS(Quality of Service) for bandwidth management and traffic prioritization and supports network.
  • Users Upload/Download Bandwidth Control speed limits, and User Device (Total) bandwidth control. Administrators can regulate the limit of each network user.
  • Supports IEEE802.11f IAPP and IEEE802.11r and IEEE802.11k Fast Roaming.
  • Support Band steering technology to automatically switch between frequency bands. When using dualband network cards with 802.11ac, users can always automatically connect to 5Ghz Radio.
  • Support Ping Watchdog function, which automatically monitoring device operations and reboots the device before a crash can occur.
  • Supports Location Tracking function, which can provide the wireless user’s distance location information to the database for analysis.
  • Software Web UI supports auto reboot setting function. Software setting allows automatically reboot by Daily/Weekly/Monthly settings.
  • Supports intelligent auto channel scanning function, automatic scanning the most undisturbed and suitable wireless channel in the field environment, which is convenient and time-saving.
  • Administrative Access : Supports Telnet and SSH.
  • Provides Traffic Monitor and Graphical GUI Status Interface for Network and Radio Overview.

Hardware Features

  • Supports 2.4G / 5G / 5GHz tri-band and the maximum transmission rates are 400/867/ 867Mbps respectively while operating up to 2200Mbps.
  • Supports 300mW at 2.4GHz/5GHz/5GHz Output eXtreme High Power design.
  • Supports 2 x 10/100/1000Mbps Gigabit Ethernet Port and ETH1 port supports PoE function.
  • IEEE 802.3at Power over Ethernet supported.
  • Support 2 external N-Type connectors are assigned to the 5GHz band.
  • Built in 2×2 5GHz 18dBi Directional Panel Antenna (H15, E16) and one built-in 2×2 2.4HGz 5dBi High-Gain Omnidirectional Antenna.
  • With IP68 weather-proof durable design are made to withstand harsh environment deployment.
  • Integrates a long-range power amplifier and high sensitivity receiver to deliver unmatched reliability and performance at large coverage application.
  • ESD protection (Electro Static Discharge): Conductive: 4KV ; Air: 8KV.
  • Complying with Open Circuit Voltage and Short Circuit Current hardware standard design.
  • Pressure vent (prevents internal condensation).

Hardware Overview

Mounting Application

     Pole Mounting

     Wall Mounting

    Adjustable Wall Mounting (adjustable mounting bracket set OW-PKUR) , OW-200 A1 and OW-408 A1 models are optional

    Adjustable Pole Mounting (adjustable mounting bracket set OW-PKUR) , OW-200 A1 and OW-408 A1 models are optional

Application Software
OS System Compatible edition Cerio CenOS 5.0 Software Core
Network Standards Conformance
  IEEE802.11 b/g/n/ac compliant
IEEE802.3 / IEEE 802.3u
IEEE802.3at Power Over Ethernet compliant
IEEE802.11r/IEEE802.11k Fast Roaming
IEEE802.11e WMM
Ethernet Configuration RJ45 10/100/1000M Ethernet Connector x2 Ports
(ETH1: Power over Ethernet 802.3at PoE in )
LED Indicators PWR  (Power)   x 1
ETH1  (PoE In)  x 1
ETH2   x 1
5G Signal (Radio1)   x 1
5G Signal (Radio2)   x 1
Wireless Specifications
Data Transfer Rate IEEE802.11b : 1 / 2 / 5.5 / 11Mbps (auto sensing)
IEEE801.11g : 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54Mbps (auto sensing)
IEEE802.11n : 400Mbps (@ 40MHz 256QAM)
IEEE802.11ac:, 867Mbps (at 80M 256AM)
Frequency Range IEEE802.11nbg : Supports 2.412 ~ 2.472 GHz
IEEE802.11a/an/11ac  : Supports  5.180 – 5.240 & 5.725 – 5.825 GHz
Channel Spacing IEEE802.11b/g/n : 20/40MHz
IEEE802.11ac: 20/40/80MHz
Media Access Protocol CSMA / CA with ACK
Modulation Method IEEE802.11b:DSSS (DBPK,DQPSK,CCK)
IEEE802.11a/g/n:OFDM (64-QAM,16-QAM,QPSK,BPSK)
IEEE802.11ac : OFDM (256-QAM, 64,-QAM, 16-QAM, QPSK,BPSK)
Operating Channels 2.4GHz : 1-13
5GHz :  36-64, 100-140, 149-165(Depends on configured regulatory domain)
Transmit Power Variation 2.4Ghz :  Max : 24 ± 1 dBm

5Ghz :  Max : 24 ± 1 dBm

Receiver Sensitivity 2.4Ghz :  Max : -96 dBm

5Ghz :  Max : -92 dBm

Environmental & Mechanical Characteristics
Operating Temperature -25 °C ~ 70 °C
Storage Temperature -30 °C ~ 80°C
Operating Humidity 10% – 95% Non-Condensing
Storage Humidity 10% – 95% Non-Condensing
Antenna Built in 18dBi 2×2 5GHz Directional Panel Antenna   ( H : 15 , E : 16) and 5dBi 2.4GHz High-Gain Antenna
2 N-Type Connectors for 5GHz external antennas
Vent Automatically adjustable Vent design
Form Factor Supports both Pole / Wall Mounting installed using a provided Mounting Bracket. With IP68 Rating
ESD Conductive: 4KV

Air: 8KV

Surge Protection Line to Line 1KV:

Line to ground 4KV (EN61000-4-5)

System Power Consumption 21Watt (Max)
Power Supply Supports Power Over Ethernet ( POE 48~57V voltage)
Integragted IEEE 802.3af /at Power over Ethernet (PoE)
Input Power IEEE802.3at 48V~57V PoE In
Dimensions ( W x H x D ) 252x 200 x 78 mm
Unit Weight 1.36kg
Production Location TW
Certifications CE, FCC, NCC, ROHS Compliant
Package Content
OW-500 A1 Main Unit x1
PoE Power Supply Kit x1
Wall/Pole Mounting Bracket x1
Adjustable Mounting Bracket Set (OW-PKUR) x1
Quick Installation Guide(Chinese/English) x2
Warranty Card x1
