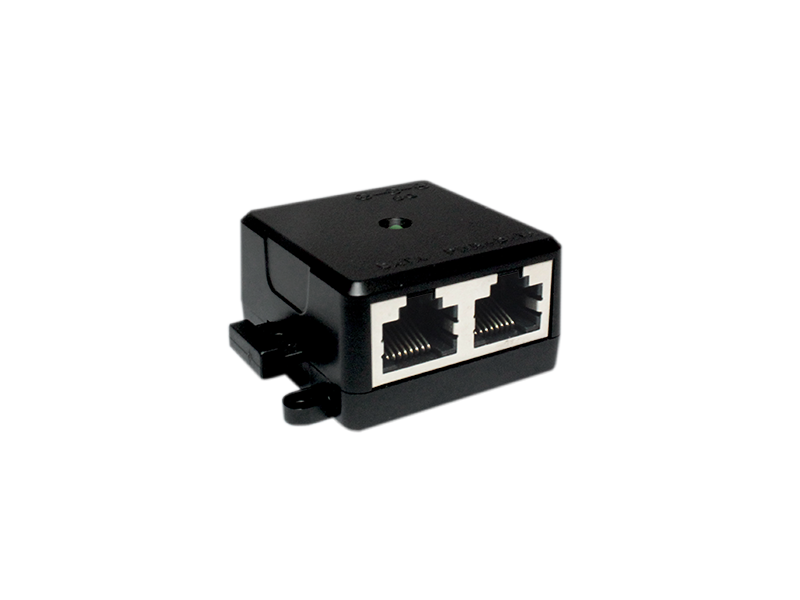

PoE Series – 24Watt 10/100/1000M Gigabit PoE Injector

The POE-PE03GE-24W Gigabit PoE Adapter bundle 48VDC 24Watt Power supply is suitable for use with products that basically does support Power Over Ethernet. Simply connect the power source to the Adapter, and then use an Gigabit Ethernet cable to connect the Adapter to the device.

Higlight Features

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, and IEEE802.3ab 1000Base-T and Compatible with 802.3af Ethernet standards.
  • Supports PoE Powered Device (PD ) classification identify in accordance with Class 3 15.4Watt PoE Power Levels.
  • Bundles 24Watt Power supply for maximum power capacity of 24Watts.
  • Supports PoE Powered Device (PD ) classification identify.
  • Supports desktop or wall mounting installation and multiple units combination for easy to bundles organize the Ethernet cables.

Long Distance Application

Cerio POE Injector can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.


The POE-PE03GE-24W It’s a cost effective solution for deploying Gigabit PoE Wireless Access Points or PoE IP Surveillance or PoE IP Phone in indoor or outdoor environments where the power source is not readily available or power cables are not permitted. In Gigabit Ethernet, four pairs of Cat5 or Cat5E twisted pairs are used as the medium for transmission. The actual data transmission only takes up two pairs of wires (pairs 1-2 and 3-6). The PoE technology utilizes
the remaining pairs (pairs 4-5 and 7-8) to conduct electricity. The output power will be dependent on the power rating of the power supply that one chooses to use. This helps to reduce number of wires that lead up to tower and others.

Additional Benefits

Some additional benefits of Cerio POE Injector include cost saving, convenience in network planning, and higher reliability.

Easy installation

Plug-and-Play, requires no configuration.


Product Application


Units Combination


 Hardware Overview

Standards & Hardware Specifications
Standard IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000Base-T
Passive PoE (Compatible to 802.3af)
Network Media  10BASE –T: UTP Cat. 3 or up
100BASE-TX : UTP Cat. 5 or up
1000BASE : UTP Cat. 5 or up
Data Transfer Rate 10/100/1000Mbps (Half-duplex), 20/200/2000Mbps (Full-duplex)
PoE Type Midspan / Type-B (PIN 4/5 & 7/8)
Data PIN PIN 1/2 & 3/6 , 4/5 & 7/8
Power PIN PIN 4/5 & 7/8
Environmental & Mechanical Characteristics
Max PoE Power 24Watts per port
Power Connector(Interface) DC-Jack
Power Input Voltage 44-57V
Power Requirement External power adapter : 48V DC/0.5A power supply for maximum output of 24Watts
LED Power on x1
Operating Temperature 0° to 55° C
Storage Temperature -40° to 70° C
Storage Humidity 5% to 90% non-condensing
Dimension ( W x H x D ) 54mm*41mm*23mm
Weight ( g ) 30g
Form Factor Wall mounting /Desktop/ Units Combination
Case of material ABS 94V-0
Production Location TW only
Certifications RoHs compatible
Package Content
POE- PE03GE-T Main Unit x1
Power Adapter x1
Warranty Card x1
