5Ghz Outdoor Omni 12dBi with RF Cable Pole / Wall Mount Antenna

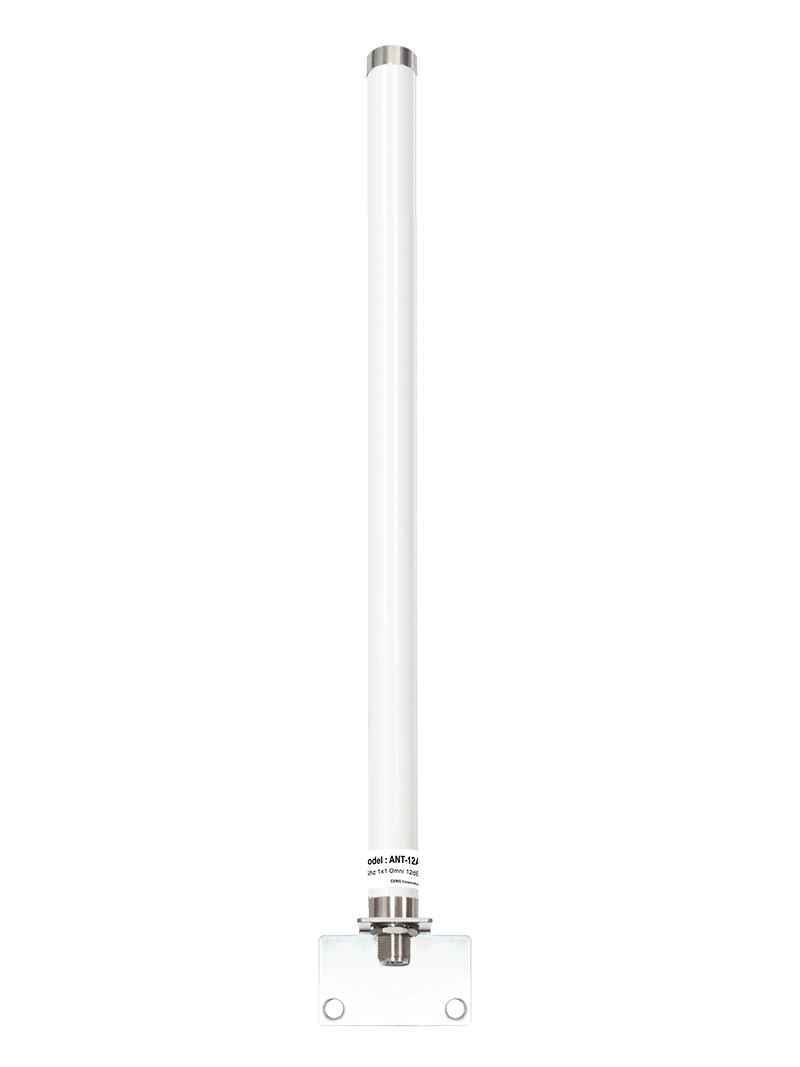

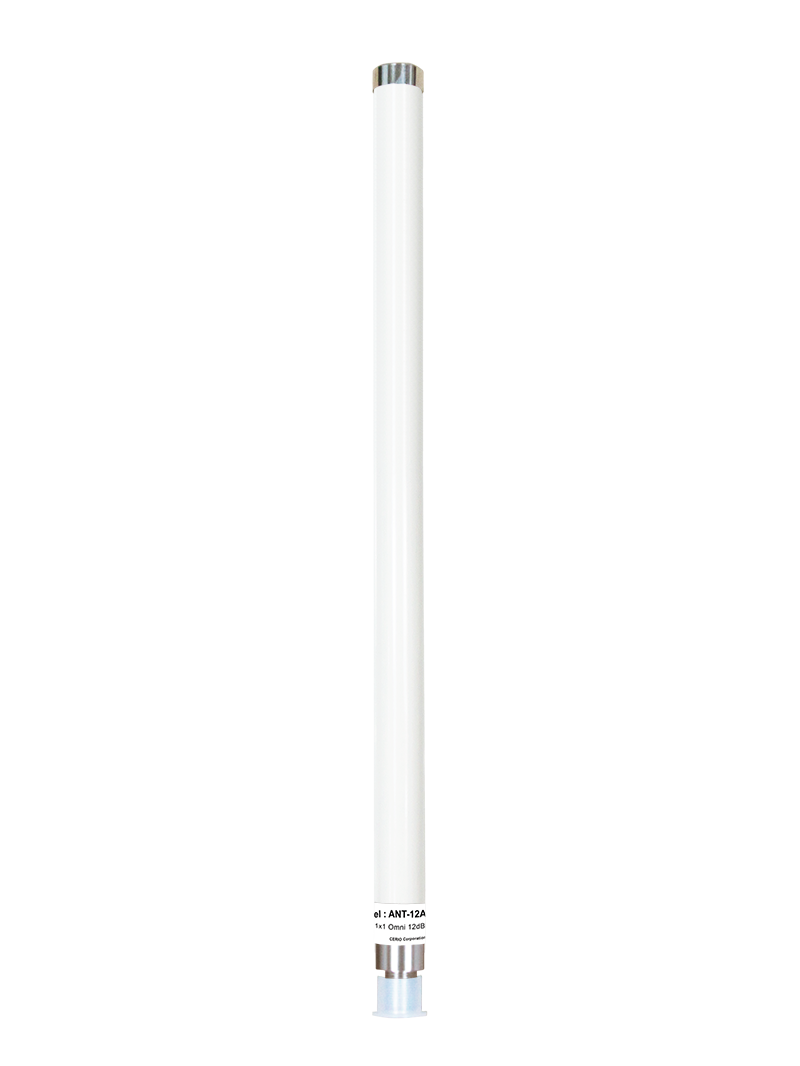

The CERIO ANT-12A is a 5GHz 1×1 Outdoor Omni 360˚ with RF Cable Pole / Wall Mount Antenna. It’s perfect solution for extending the range and increasing the signal strength of an outdoor wireless network.
The CERIO ANT-12A is a 5GHz 1×1 Outdoor Omni 360˚ with RF Cable Pole / Wall Mount Antenna. It’s perfect solution for extending the range and increasing the signal strength of an outdoor wireless network. It provides a 12˚ range E Plane coverage for point to multi -point application. The ANT-12A supports 5.1 to 5.9 GHz and provides superb performance in IEEE 802.11a/an/ac Wi-Fi. ANT-12A all materials are considered good in water tightness and prevention of rust characteristics. All products pass a strict test, and satisfy professional user product needs.
- Supports 5Ghz IEEE 802.11a/an/ac.
- High Gain: 12dBi.
- 360 ̊Width-H Plane and 12˚ Width-E Plane coverage.
- High performance for Point to Multi-point Applications.
- Light-weight and easy installation.
- IP67 Waterproof design.
- Supports one N-Jack(Female) connector.
- Supports pole & wall mounting.
- Bundle with RF cable with a waterproof cap and pole & wall mounting kit.
Direct Installation Application
with optional Model of LP-300 to full Installation Application
( Antenna Lightning Surge Protector )

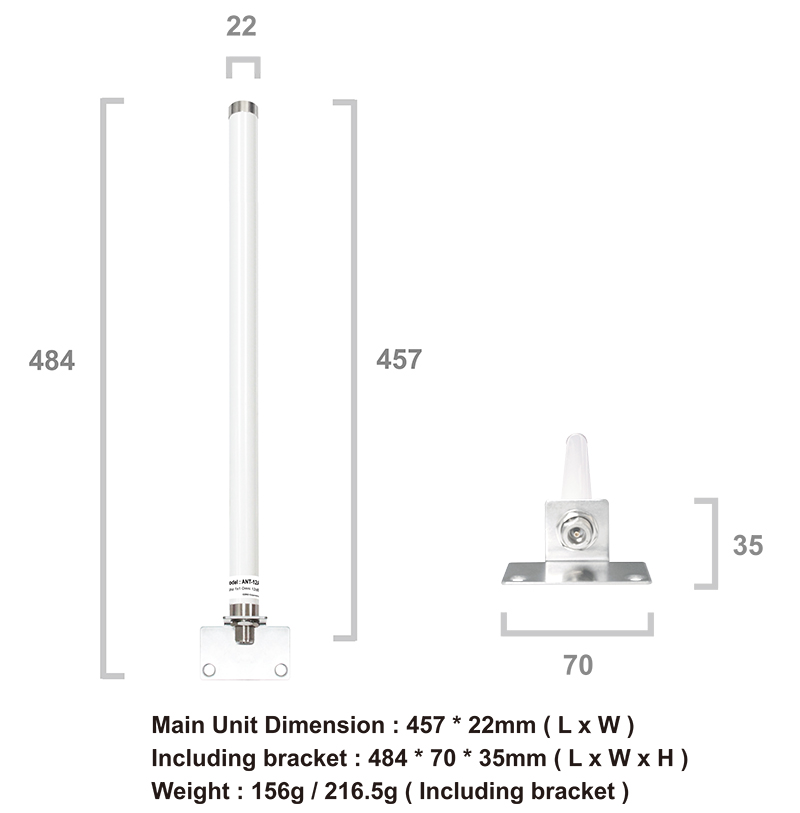

ANT-12A Hardware Overview / Dimension

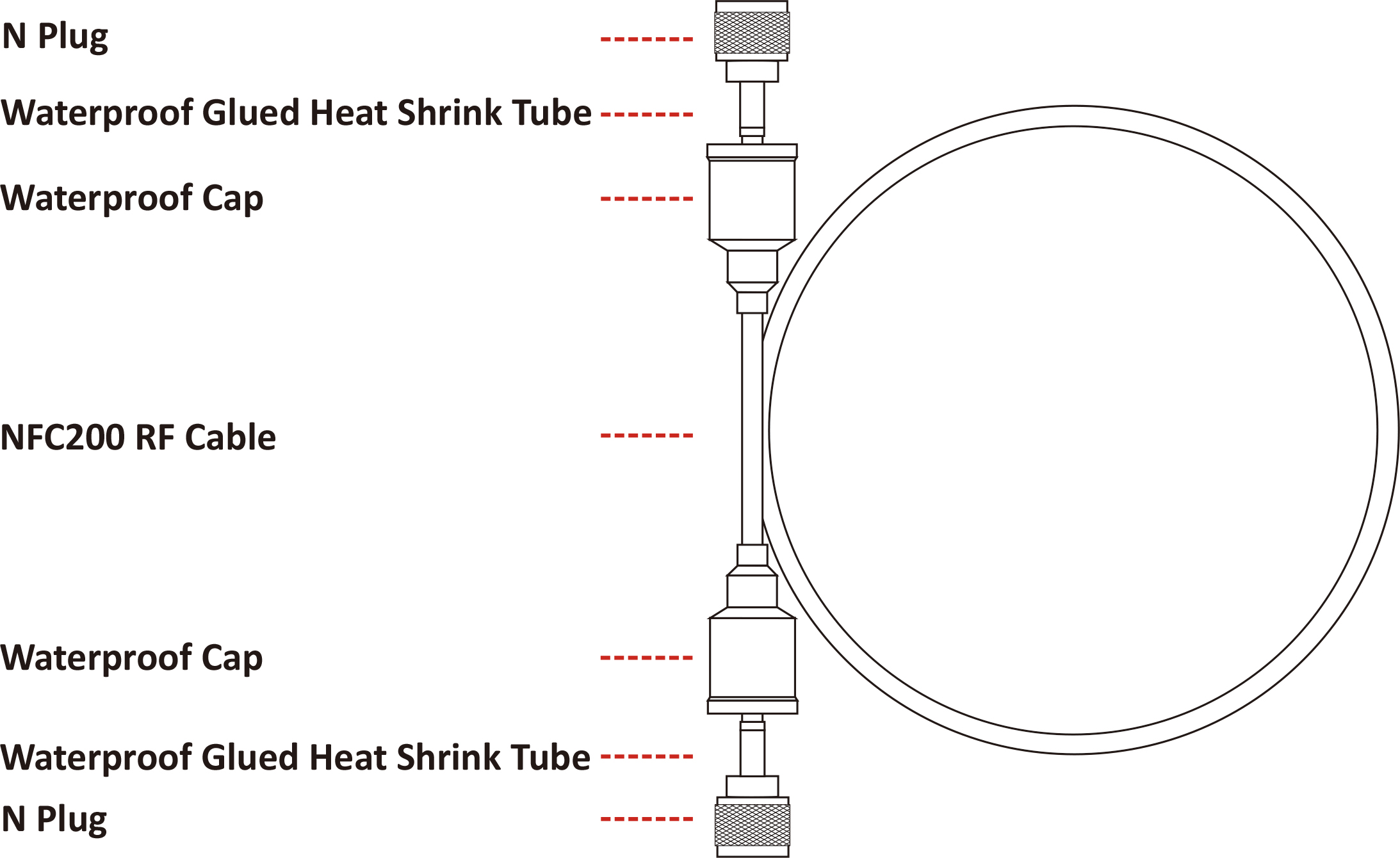

RF Cable Overview (NFC-NNP-1M)

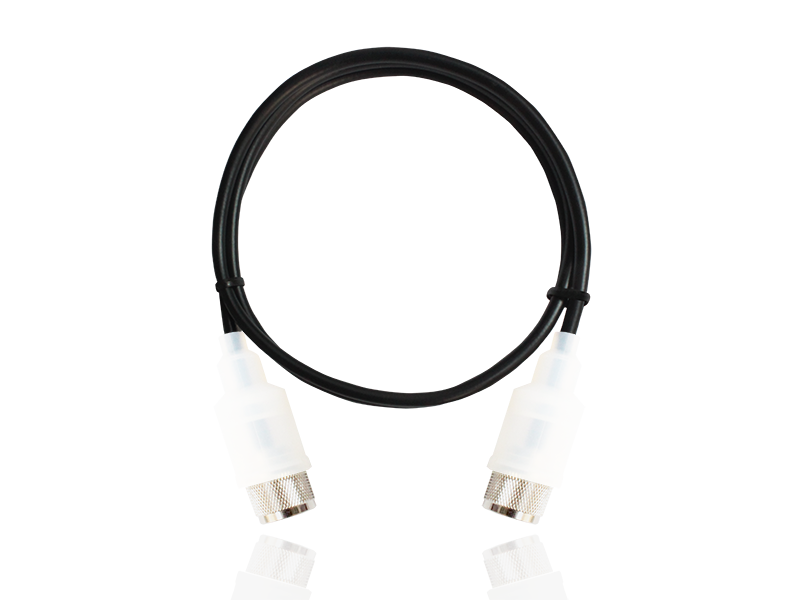

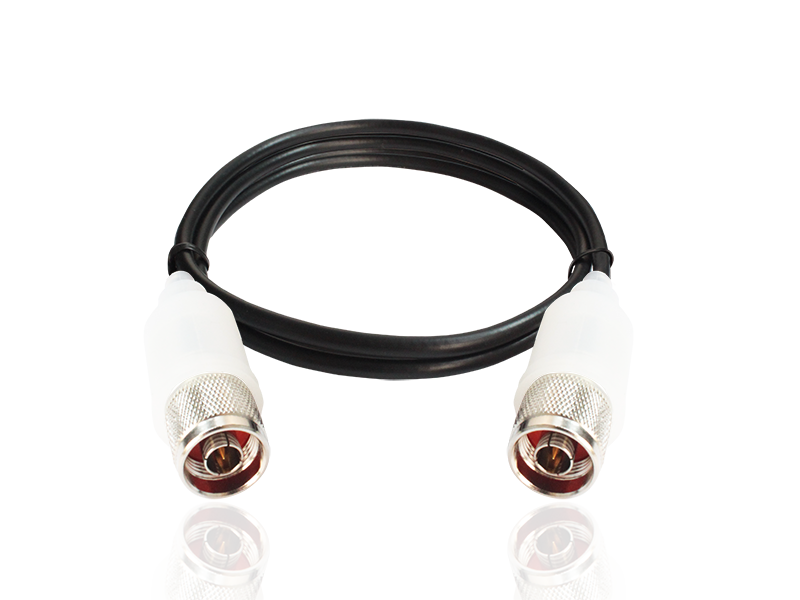

RF Cable Specification ( NFC-NNP-1M )
|Antenna Type||Outdoor Omni Antenna|
|Frequency Range||5.1 ~ 5.9GHz (11a/an/ac)|
|Network Specification||Wireless 5Ghz Network IEEE 802.11a/an/ac|
|Antenna Gain||12 dBi|
|Beam Width-H Plane||360˚|
|Beam Width-E Plane||12˚|
|Input Impedance||50 Ohms|
|Form Factor||Supports Wall Mounting, Pole Mounting Installation
( Pole U-Clamps/Available Pole Range Ø20-Ø52mm )
|Rated Wind Velocity||210Km / Hour|
|Operation Temperature||-50˚C – + 85˚C|
|Storage Temperature||-50˚C – + 85˚C|
|Humidity||5~90% maximum (non-condensing)|
|Product Dimension||Antenna: 457*22 (L x W) mm
Antenna with mounting kit: 484*70*35 (L x W x H)mm
|Weight||Antenna : 156g
Antenna with mounting kit : 216.5g
|Production Location||TW Only|
|ANT-12A Antenna Main Unit||x1|
|Pole & Wall Mounting Kit||x1|
|RF 1 Meter Cable (NFC-NNP-1M)||x1|
|Quick Installation Guide Booklet||x1|
