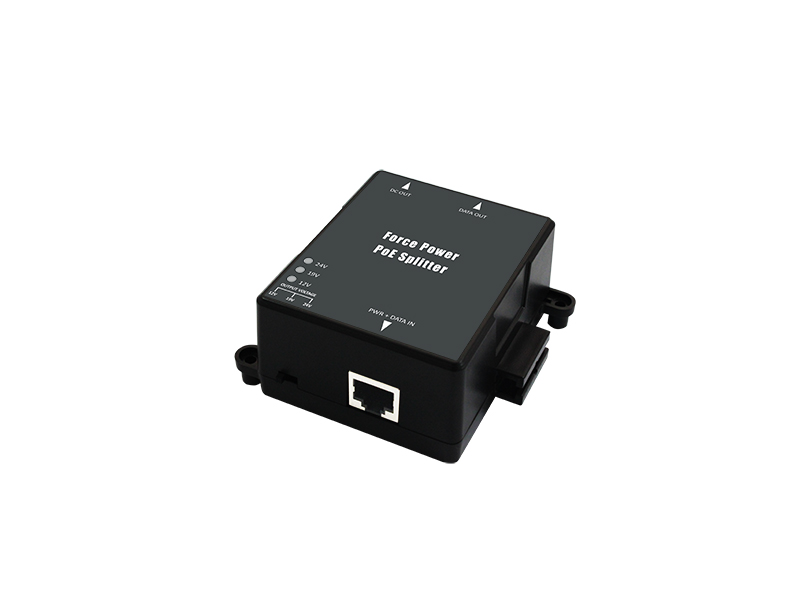

FPOE-PD80

4Pair Force Power Gigabit PoE++ splitter

The CERIO FPOE-PD80 4Pair Force Power Gigabit PoE++ Splitter delivers Power over Ethernet to remote devices. Supports IEEE 802.3af/at standard and compatible with IEEE 802.3bt Power level. It provides PoE 50-57V Ethernet power + data input to separate to only DC/Power output up to 80Watt and only Ethernet/Data output. And DC output voltage switchable to 12V or 19V and 24V. This Force High-Power splitter allows a noncompliant device to upgrade to PoE, it is used to deploy remote non-PoE device with no nearby AC outlets brings lots of convenient.

Higlight Features

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af, IEEE 802.3at standard and compatible with IEEE 802.3bt Power level.
  • Supports 10/100/1000Mbps Gigabit Ethernet.
  • It can use to connect non-PoE compliant devices to an PoE injector or PoE switch.
  • Supports Output Voltage hot switching for 12VDC/19VDC/24VDC three range adjustable.
  • Max Power Output after split power & data : 80Watt(24V)、75Watt(19V) and 50Watt(12V).(Please refer to below Force Power POE Product Matching List)
  • Supports Ethernet PoE to Separate to only DC/Power and only Ethernet/Data.
  • Bundle accessories for inside diameter 2.1 mm(PHY) to 2.1 (PHY) mm DC cable.
  • LED indicators for DC output voltage display of 12V / 19V / 24V.
  • Supports desktop or wall mounting installation and multiple units combination for easy to bundles organize the Ethernet cables.

Functionality

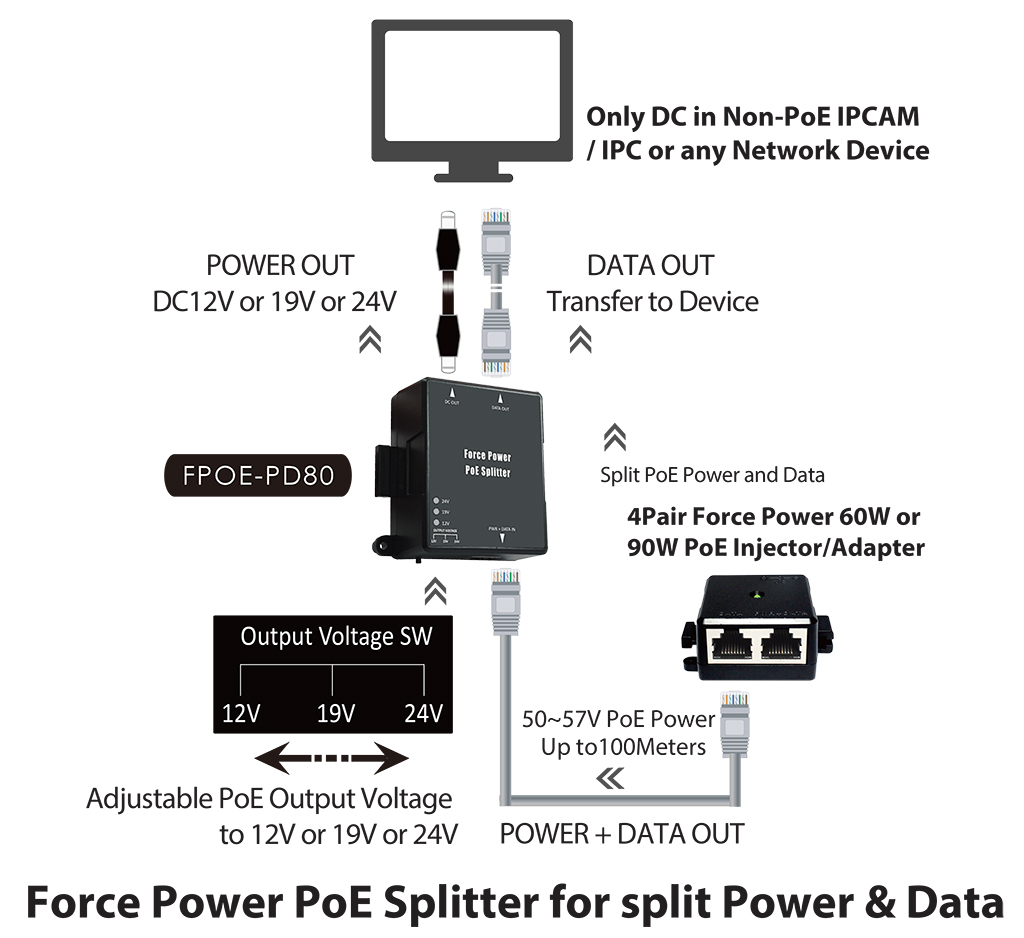

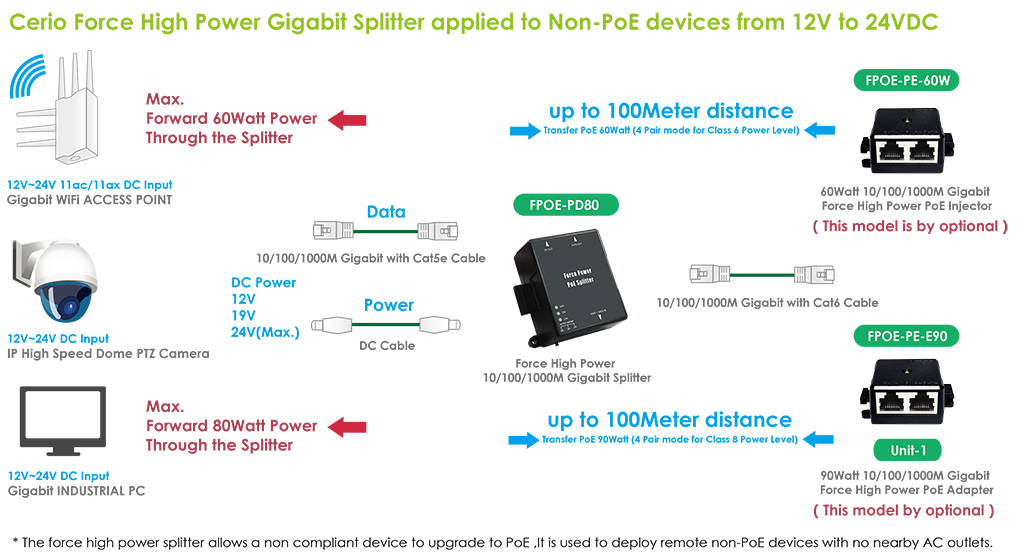

CERIO FPOE-PD80 uses the latest hardware hotswitching protection design, which can effectively prevent the fault caused by instantaneous switching of different voltage. The device will not cause any damage while changing the voltage output during operation. It provides DC 12V or 19V or 24V needs for any network or non-network equipment through DC to DC Cable which is included with package. Using the Gigabit PoE++ Splitter, you can take advantage of Power Over Ethernet and place Fast/Giga Ethernet-enabled products, such as latest WiFi 6 generation 802.11ax WiFi AP, PoE IP Speed Dome PTZ CAM, industrial PC and remote digital signage display where power outlets are not readily available.

Long Distance Application

The Cerio 4Pair Force Power Gigabit PoE++ Splitter is able to split the PoE signal into separate data and power sources up to total 100Meters (328 feet)with suggest use a Cat 6 Ethernet cable to meet 100Meters PoE distance.

ESD Protection

CERIO FPOE-PD80 supports ESD, Electro Static Discharge protection includes Over Voltage protection and Short Circuit Protection ensuring device safety.

Additional Benefits

Some additional benefits of FPOE-PD80 include cost saving, high power splitter application in network planning and provide high flexible & reliability.

Easy installation

Simple Plug-and-Play, requires no configuration.



Force Power POE Product Matching List

Force Power POE Splitter
Product Series		 Force Power POE Injector
Product Series		 Max Power Output after split
power & data
Force Power POE Splitter
Product Series
FPOE-PD80
FPOE-MPD80		 90Watt POE Injector Series
FPOE-PE-E90
FPOE-MG-E90
FPOE-DXG-90W		 80Watt (DC 24V Output)
75Watt (DC 19V Output )
50Watt (DC 12V Output )
60Watt POE Injector Series
FPOE-PE-60W
FPOE-MG-60W
FPOE-DXG-60W		 55Watt (DC 24V Output)
50Watt (DC 19V Output )
45Watt (DC 12V Output )

* When the power to be requested is more than 802.3at Class 4 30Watt power, please use the recommended POE Injector selected above as your power source.



Product Application





Hardware Overview

Standards & Hardware Specifications
Standard IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE802.3at Power over Ethernet (PoE)
IEEE802.3af Power over Ethernet (POE+)
Compatible to IEEE 802.3bt Power Level (PoE++)
Network Media 10BASE –T: UTP Cat. 3 or up
100BASE-TX : UTP Cat. 5 or up
1000BASE-T: UTP Cat. 5 or up
Data Transfer Rate 10/100/1000Mbps (Half-duplex)

20/200/2000Mbps (Full-duplex)
Data PIN PIN 1/2, 3/6 & 4/5, 7/8
Power PIN End-span (Type-A): PIN 1/2,3/6 ;

Mid-span (Type-B): PIN 4/5,7/8
Data in Connects PC/HUB/Switch
Ethernet Connector RJ-45 x1 for Power + Data input
RJ-45 x1 for Data output
Power Interface Output : DC-Jack Out
Input : RJ45 POE In
ESD Protection Over Voltage protection and Short Circuit Protection
Environmental & Mechanical Characteristics
Max Power Output 80Watt (DC 24V Output)
75Watt (DC 19V Output )
50Watt (DC 12V Output )
Power Interface(output) DC-Jack
Power Requirement 50V~57V PoE Power Source
POE Input Voltage 50V~57V
DC Output Control Range 12V/19V/24V three range adjustable by DIP switch
DC Output Current 24V/3.33A , 19V/3.94A, 12V/4.17A
Cable and Current-Resistance Loss DC 24V @ 100Meter : 12.50% with Cat.6 Cable
DC 19V @ 100Meter : 13.33% with Cat.6 Cable
DC 12V @ 100Meter : 14.00% with Cat.6 Cable
LED Indicators Voltage Output LED x3 : 12V or 19V or 24V
Operating Temperature 0° to 55° C
Storage Temperature -40° to 70° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 90% non-condensing

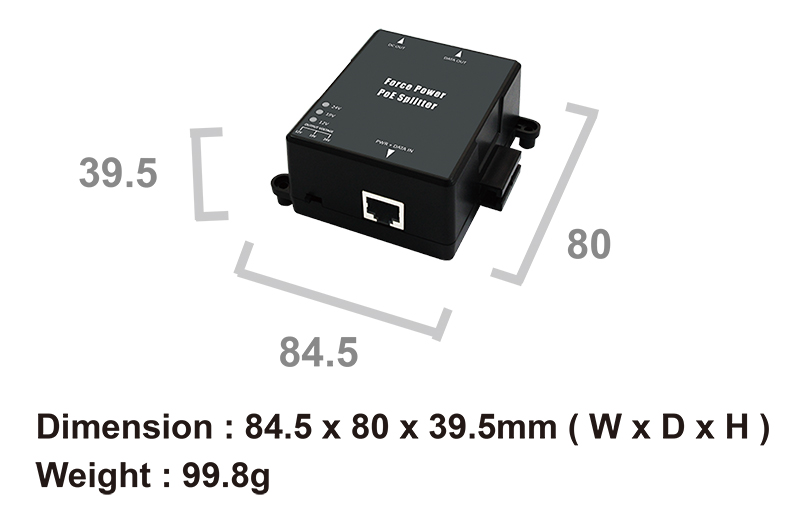

Dimension ( W x H x D ) 84.5 x 80 x 39.5mm
Weight ( g ) 99.8g
Case of material ABS
Production Location TW Only
Certifications FCC ,CE, RoHs compatible
Package Content
FPOE-PD80 Main Unit x1
Inside diameter 2.1mm(PHY) to 2.1mm DC Cable x1
Quick Installation Guide x1
Warranty Card x1
