CS-1008G-8P A2

8 Port 10/100/1000M Gigabit PoE+ Switch with 10Mbps Ethernet Extend ( 160Watt Power )

CS-1008G-8P A2 is a powerful and IEEE 802.3af/at Power over Ethernet high-performance Gigabit Ethernet switch, More support to extends POE up to 280Meter at 10Mbps speed , And support with all 8 ports capable of 10/100Mbps or 1000Mbps auto-negotiation operation which means the switch could automatically negotiate with the connected partners on the network speed and duplex mode. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications. Moreover, the 10/100/1000Mbps auto-sensing ability provides an easy way to migrate 10Mbps to 1000Mbps network with no pain.

Data Sheet

Transmission distance 280m test report

This switch supports 8 Port 10/100/1000M Gigabit port Power over Ethernet (PoE+), 10Mbps speed with 802.3at 30Watt PoE+ power output over distance up to 280 meters on RJ45 UTP cable. Up to 280m PoE distance allows you to expand your network via Ethernet cable to where there is no power line or outlet but where you want to fix devices such as APs, IP Cameras or IP Phones, etc.. No longer need to worry about the complicated cables and long distance which may cost you a lot of time and money. By integrating the data transmitting cable and power cord, it eliminates the effort constructing your network. Over current protection and circuit shorting protection are also supported to ensure the safety.



Highlight Features

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE-802.3af PoE ,IEEE802.3at PoE+
  • 8port 10/100/1000Mbps TX Auto-Negotiation Ethernet Switch supports 8 Port Gigabit PSE / PoE function, compliant with IEEE-802.3af class3 /class2/class1 and IEEE802.3at
  • Ethernet Extend Mode per port DIP switch control makes transmission distance up to 280m
  • Support PoE Power Maximum 30W for share 1~8 PSE/PoE Ports
  • Internal 160Watt power supply supports a maximum PoE power budget of 130 Watt
  • Full/Half-Duplex capability on each TX port,
  • Supports Store & Forward architecture and performs forwarding and filtering
  • Auto-learning networking configurations
  • Supporting the flow control: backpressure for Half-duplex and IEEE 802.3x for Full-duplex Mode
  • Broadcast storm control and supporting store & forward operation
  • Support Jumbo Frame 9K
  • Non-blocking & Non-head-of-line blocking full wire speed forwarding
  • Supports TP interface Auto MDIX function for auto TX/RX swap
  • Automatic Source MAC Address Learning and Aging
  • Supports up to 4K MAC addresses
  • Up to 1.5Mbits buffer



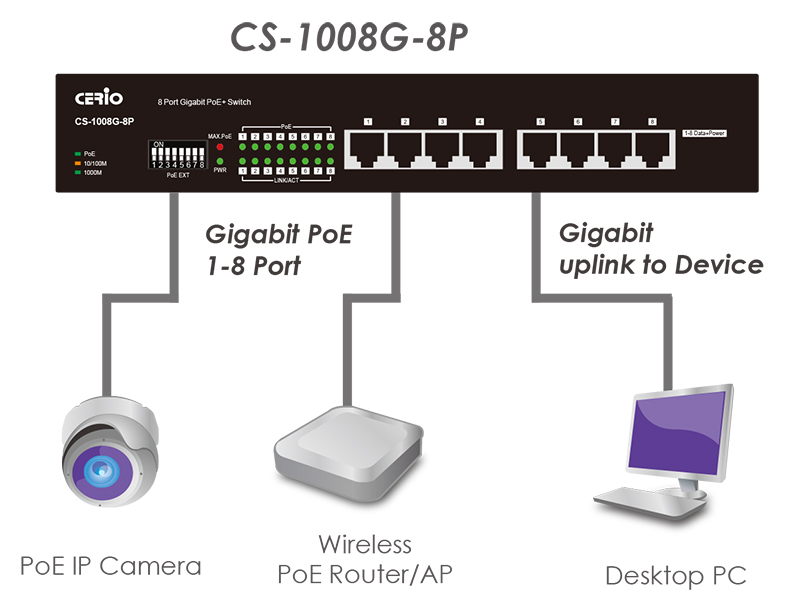

Application









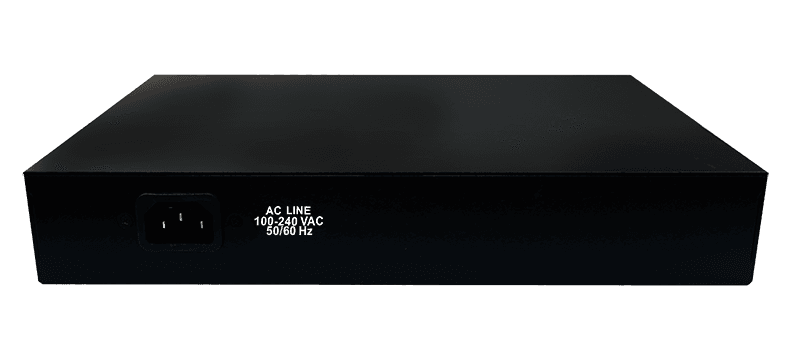

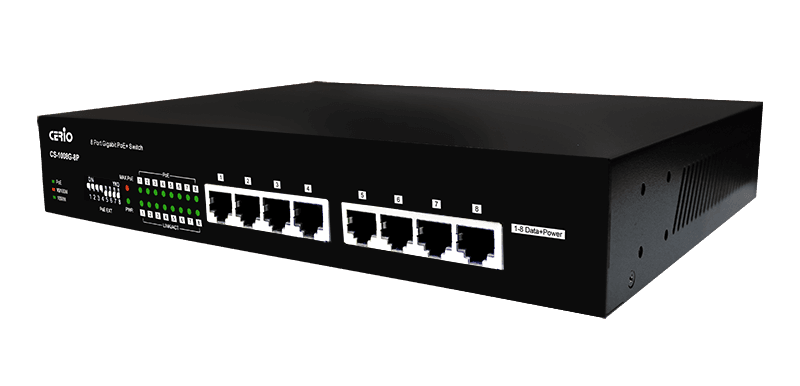

Overview



CS-1008G-8P A2 Specifications

Standards & Hardware Specifications
Network Standards Conformance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet ( 15.4 Watt PoE ) IEEE 802.3at Power over Ethernet Plus (30Watt PoE+ )
Port Configuration 8ports RJ-45 connectors for 10/100/1000Mbps
(With 8 Port Gigabit PSE/ PoE+ function )
DIP Switch Support 10Mbps /280m transition function for PoE ports (Per port DIP switch control)
Media Access Protocol CSMA / CD
Network Media 10BASE –T: UTP Cat. 3 or up,
100BASE-TX: UTP Cat. 5 or up,
1000BASE-T: UTP Cat. 5 or up
Transmission Method Store and Forward
MAC Address Table 4K
Built-in Buffer 1.5Mb
Jumbo Frame 9K
Data Transfer Rate 10/100/1000Mbps (Half-duplex),
20/200/2000Mbps  (Full-duplex)
Auto MDI/MDIX Yes
LED Indicators Per Port : Link/ACT Status x8
Per Port: PoE Status x8
Per Unit: MAX PoE x1
Per Unit: Power x1
Internal Bus Speed 16Gbps
Environmental & Mechanical Characteristics
Power Type 160 Watt Internal Power Supply
PoE Power Budget 54V for 130Watt (shared) for all PoE ports
Power Consumption 12V for 4.3 Watt (max. with no PoE Device Connected)
PoE Power Output Up to 30W per port, 54V DC
Power Requirement AC 100~240V AC, 50-60Hz Auto-sensing
Operating Temperature 0° to 40° C
Storage Temperature -40° to 70° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 90% non-condensing
Dimensions ( W x H x D ) 265 x 184 x 44 mm
Unit Weight 1.62kg
Certifications FCC, CE, RoHS-Compliant
Package Contents
CS-1008G-8P Main Unit x1
Power Code
Quick Installation Guide Booklet x1
19” Rack Mount Brackets x1
Warranty Card x1

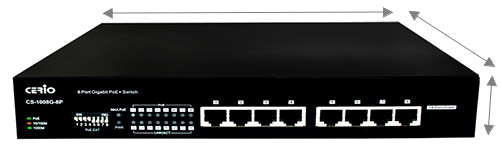

Product Dimension for width x depth x height ：265 x 184 x 44 mm

Weight：1.62KG
