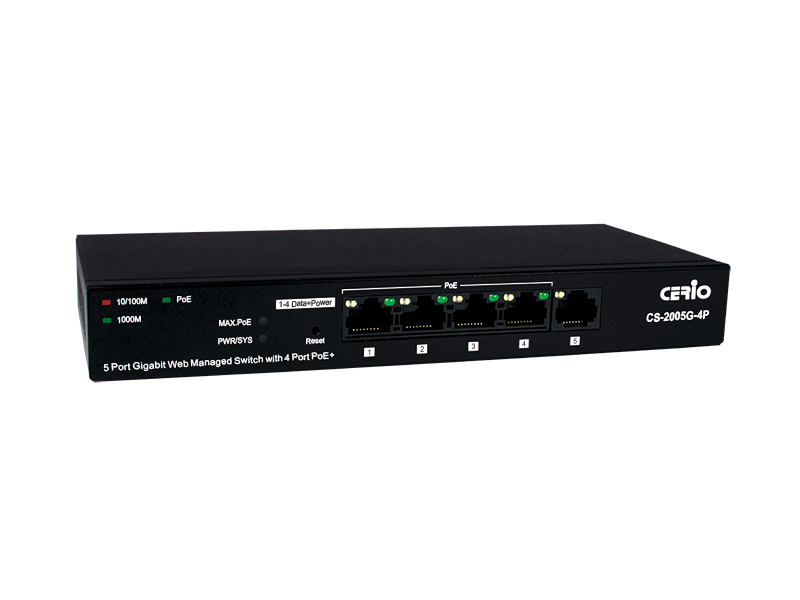

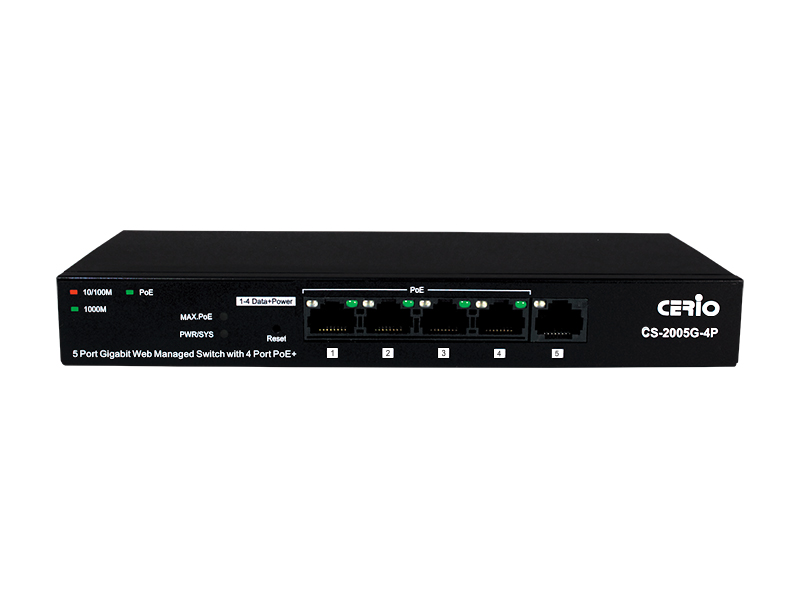

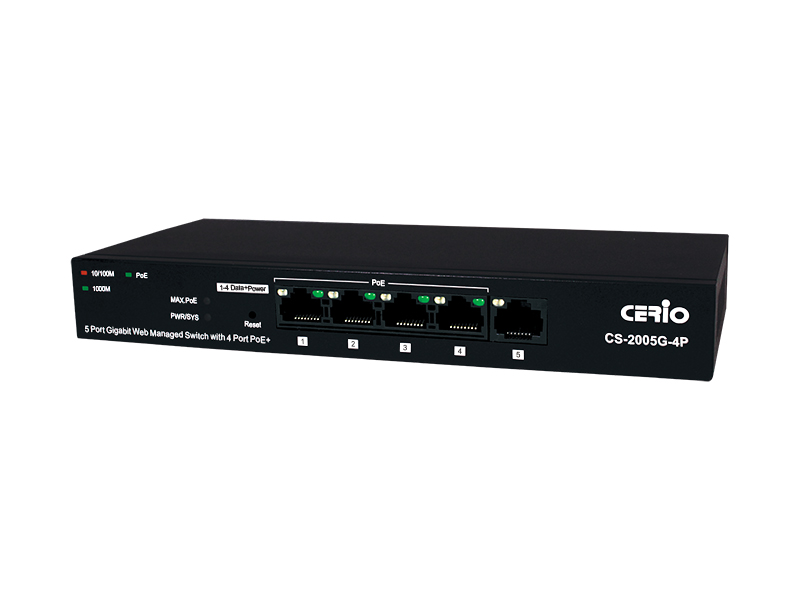

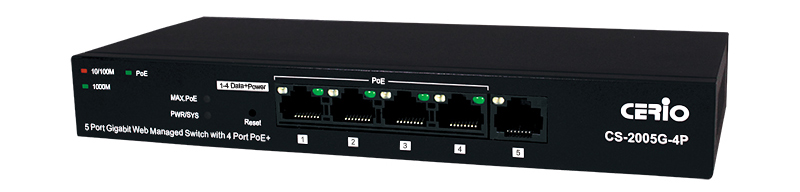

CS-2005G-4P



PoE CS-2000 Series – 5 Port 10/100/1000M Gigabit Web Managed Switch with 4 Port PoE+ ( 72Watt Power )

CS-2005G-4P is a powerful high-performance 5 port 10/100/1000Mbps web managed switch and utilizes 4 ports compliant to IEEE 802.3at PoE+ and 802.3af PoE. This layer 2 Web Management switch bundles a 72watt power adapter and supports Remote on/off control of PoE power ports. Additional supported features include port base IEEE802.1Q VLAN Tagging, IGMP snooping, and IEEE802.1p port-based QoS prioritization. CS-2005G-4P can solve limitations of power outlet locations and offer system relocation convenience.

CS-2005G-4P is a powerful high-performance 5 port 10/100/1000Mbps web managed switch and utilizes 4 ports compliant to IEEE 802.3at PoE+ and 802.3af PoE. This layer 2 Web Management switch bundles a 72watt power adapter and supports Remote on/off control of PoE power ports. Additional supported features include port base IEEE802.1Q VLAN Tagging, IGMP snooping, and IEEE802.1p port-based QoS prioritization. CS-2005G-4P can solve limitations of power outlet locations and offer system relocation convenience
CERIO’s CS-2005G-4P PoE+ Switch is designed for dispersing managed Power over Ethernet to small and medium sized networks architectures. It is ideal for micro-segmenting large network into smaller networks, connecting subnets for improved performance, and enabling the bandwidth demanded for multimedia and imaging applications. Users can easily connect Wireless APs, VoIP phones, and IP Cameras to this switch for convenient power and data transmission. Over current protection and circuit shorting protection are also supported to ensure product safety. This device provides easy installation, eliminates limitations of power outlet locations, and offers a simple solution for system relocation.

Features

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3az IEEE, IEEE-802.3af PoE, IEEE802.3at PoE+
  • 5 port 10/100/1000Mbps TX Auto-Negotiation Ethernet Switch , 4 Port Gigabit PSE / PoE function compliant with IEEE-802.3af class3 /class2/class1 and IEEE802.3at class4.
  • Supports PoE Green Power Energy Saving function to automatically detect connected devices and smartly direct necessary output wattage to only those ports to achieve green power saving
  • Supports power of up to 30Watt/15.4Watt/7.5Watt/4Watt for each PSE/PoE port
  • Bundle 72watt power supply ,supports a maximum PoE power budget of 60 Watt (shared between 4 PoE Ports)
  • Supports remote power control of PoE powered devices (PD), allowing by internet web on/off/restart control and supports monitoring of individual port PoE consumption (wattage)
  • Full/Half-Duplex capability on each TX port , Auto-learning networking configurations
  • Supporting flow control: back pressure for Half-duplex and IEEE 802.3x for Full-duplex mode
  • Supports Store and Forward functionality
  • Non-blocking & Non-head-of-line blocking full-wire speed forwarding
  • Supports TP interface Auto MDIX function for auto TX/RX swap
  • Provides 9K Jumbo frames to improve network utilization of a large file transfers
  • Supports up to 4K MAC addresses
  • Up to 1Mb Packet Buffer size
  • VLAN and IEEE802.1Q tag-base VLAN based on ports & VIDs; add/remove/modify tag
  • IEEE802.3ad Link Aggregation Port trunking ( LACP )
  • Provides IGMP snooping function
  • Supports IEEE802.1p QoS with 4 Priority Queues and 8 Priority Weights, and Port- based QoS with 4 Priority Queues
  • Supports Port Mirroring function
  • Supports file backup and recovery
  • Web-based management interface
Standards & Hardware Specifications
Standards Conformance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T,
IEEE 802.3x Flow Control
IEEE 802.3az EEE
IEEE 802.1p QoS
IEEE 802.1Q VLAN Tag
IEEE 802.3ad Link Aggregation
IEEE 802.3af Power over Ethernet ( 15.4 Watt PoE+ )
IEEE 802.3at Power over Ethernet Plus ( 30 Watt PoE+ )
Port Configuration 5 ports RJ-45 connectors for 10/100/1000 BASE-T and PSE/ PoE function
(With 4 Ports PSE/PoE+ function)
Hardware Reset Reset Button for returning to original factory settings
Hardware on /off  Power Switch
Media Access Protocol CSMA / CD
Network Media 10BASE –T: UTP Cat. 3 or up,
100BASE-TX: UTP Cat. 5 or up,
1000BASE-T: UTP Cat. 5 or up
Transmission Method Store and Forward
MAC Address Table 4K
Built-in Buffer 1Mb
Data Transfer Rate 10/100Mbps (Half-duplex), 20/200Mbps (Full-duplex)
1000Mbps ( Half-duplex), 2000Mbps (Full-Duplex)
Jumbo Frames 9k Jumbo Frames Support
Auto MDI/MDIX Yes
LED Indicators Per Port:(Link/Act): Status * 5 ,
PoE : Status *4
Max. PoE*1 (PoE Load greater than 70% warning)
Per Unit: Power / SYS*1,
Internal Bus Speed 10Gbps
Switch Specifications
Link Aggregation IEEE802.3ad LACP Link Aggregation Supported
Port Mirroring  Supported
QoS Support IEEE 802.1p QoS , Port-based QoS
IGMP Snooping supported
VLAN IEEE802.1Q Tagging VLAN , Port-Based ,Tag based VLAN
Environmental & Mechanical Characteristics
PoE Power Budget  55V/1.3A for 60Watt (shared) for all PoE ports
Power Consumption  55V for 6.2Watt  (max. with no PoE Device connected)

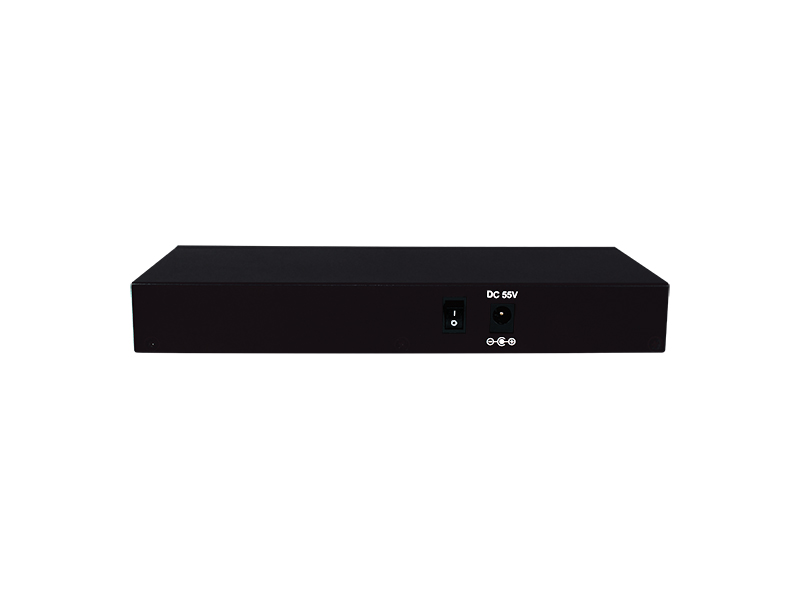

Power Type DC-Jack : for bundled External Power adapter
Power Requirement AC 100~240 AC Power, 55V / 1.3A DC Input
Operating Temperature 0° to 40° C
Storage Temperature -40° to 70° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 90% non-condensing
Dimension 193 x 84 x 26 mm
Weight  397g
Certification  FCC, CE, RoHS-compliant
Package Content
CS-2005G-4P Main Unit x1
CD Manual x1
Power Adapter x1
Warranty Card x1
