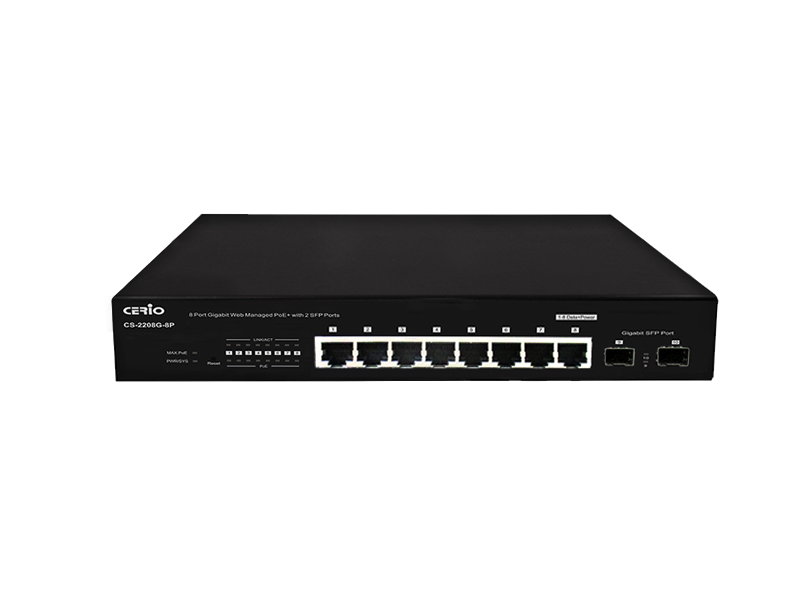

CS-2208G-8P A1
CERIO CS-2000 Series Model: CS-2208G-8P A1 is apowerful high-performance 8 port 10/100/1000Mbps web managed switch with 2 SFP Ports and is compliant with POE+ IEEE 802.3at and 802.3af standards. This layer 2 Web Management switch includes a 160watts internal power supply and supports 130 Watt PoE Power budget, port base IEEE802.1Q VLAN Tagging, IGMP snooping, and IEEE802.1p port-based QoS.
CS-2208G-8P A1 can solve the limitations of power outlet locations and offer system relocation convenience.
CERIO’s CS-2208G-8P A1 PoE+ Switch is designed for dispersing managed Power over Ethernet to small and large networks architectures. It is ideal for microsegmenting large network into smaller networks,connecting subnets for improved performance, and enabling the bandwidth demanded for multimedia and imaging applications. Users can easily connect Wireless APs, VoIP phones, and IP Cameras to this switch for convenient power and data transmission. Over current protection and circuit shorting protection are also supported to ensure product safety. This high power device provides easy installation, avoids limitations of power outlet locations, and offers a simple solution for system relocation.
Highlight Features
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX , IEEE 802.3az EEE, IEEE-802.3af PoE, IEEE802.3at PoE+.
- 8port 10/100/1000Mbps TX Auto-Negotiation Ethernet Switch , 8 Port Gigabit PSE / PoE function compliant with IEEE-802.3af class3 /class2/class1
and IEEE802.3at class4. - Supports 2 Gigabit SFP uplink ports for connecting MiniGBIC 1000Base-SX/LX fiber modules.
- Supports PoE Green Power Energy Saving function to automatically detect connected devices and smartly direct necessary output wattage to only
those ports to achieve green power saving. - Supports power of up to 30Watt/15.4Watt /7.5Watt/4Watt for each PSE/PoE port.
- Internal 160 Watts power supply supports a maximum PoE power budget of 130 Watts.
- Supports remote power control of PoE powered devices (PD), allowing by internet webon/off/restart control and supports monitoring of individual port PoE consumption (wattage).
- Full/Half-Duplex capability on each TX port , Autolearning networking configurations.
- Supporting flow control: back pressure for Halfduplex and IEEE 802.3x for Full-duplex mode.
- Supports file backup and recovery.
- Supports Store and Forward functionality.
- Non-blocking & Non-head-of-line blocking fullwire speed forwarding.
- Supports TP interface Auto MDIX function for auto TX/RX swap.
- Provides 9K Jumbo frames to improve network utilization of a large file transfers.
- Supports up to 4K MAC addresses and Up to 1.5Mb Packet Buffer size.
- VLAN and IEEE802.1Q tag-base VLAN based on ports & VIDs; add/remove/modify tag.
- IEEE802.3ad Link Aggregation Port trucking( LACP ).
- Provides IGMP snooping function.
- Supports IEEE802.1p QoS with 4 Priority Queuesand 8 Priority Weights, and Port- based QoS with4 Priority Queues.
- Supports Port Mirroring function.
- Supports file backup and recovery.
- Web-based management interface.
Hardware Overview
| Standards & Hardware Specifications | |
| Standards Conformance | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX IEEE 802.3x Flow Control IEEE 802.3az EEE IEEE 802.1p QoS IEEE 802.1Q VLAN Tag IEEE 802.3ad Link Aggregation IEEE 802.3af Power over Ethernet ( 15.4 Watt PoE+ ) IEEE 802.3at Power over Ethernet Plus (30Watt PoE+ ) |
| Port Configuration | 8 ports RJ-45 connectors for 10/100/1000 BASE-T and PSE/ PoE function 2 SFP Uplink Ports |
| Hardware Reset | Reset button for returning to factory settings |
| Media Access Protocol | CSMA / CD |
| Network Media | 10BASE –T: UTP Cat. 3 or up, |
| 100BASE-TX: UTP Cat. 5 or up, | |
| 1000BASE-T: UTP Cat. 5 or up | |
| Transmission Method | Store and Forward |
| MAC Address Table | 4K |
| Jumbo Frame | 9K |
| Built-in Buffer | 1.5M bits |
| Data Transfer Rate | 10/100Mbps (Half-duplex), |
| 20/200Mbps (Full-duplex) | |
| Auto MDI/MDIX | Yes |
| LED Indicators | Per Port: Link/Act Status x8 Per Port: PoE Status x8 Gigabit SFP Port: Connection Status x2 Max. PoE (PoE Load greater than 70% warning) x1 Per Unit: Power/SYS x1 |
| Internal Bus Speed | 20 Gbps |
| Switch Specifications | |
| Link Aggregation | IEEE802.3ad LACP Link Aggregation Supported |
| Port Mirror | Supported |
| Quality of Service (QoS) | Supports IEEE 802.1p QoS, Port-based QoS |
| IGMP Snooping | Supported |
| VLAN | Support IEEE 802.1q Tag Based VLAN or Port Based VLAN |
| Environmental & Mechanical Characteristics | |
| PoE Power Budget | 160 Watt Internal Power Supply |
| Power Consumption | 53V for 10.5 Watt (max. with no PoE Device connected |
| Power Type | Power cord: Internal Power supply |
| PoE Power Output | Up to 30W per port, 53V DC |
| Power Requirement | AC 100~240VAC, 50-60Hz Auto-sensing |
| Operating Temperature | 0° to 40° C |
| Storage Temperature | -40° to 70° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Dimension ( W x D x H ) | 265 x 184 x 44 mm |
| Weight | 1.65Kg |
| Production Location | TW or CN |
| Certification | FCC, CE, RoHS-compliant |
| Package Content | |
| CS-2208G-8P Main Unit | x1 |
| Power Code | x1 |
| 19” Mount Brackets | x1 |
| Warranty Card | x1 |
