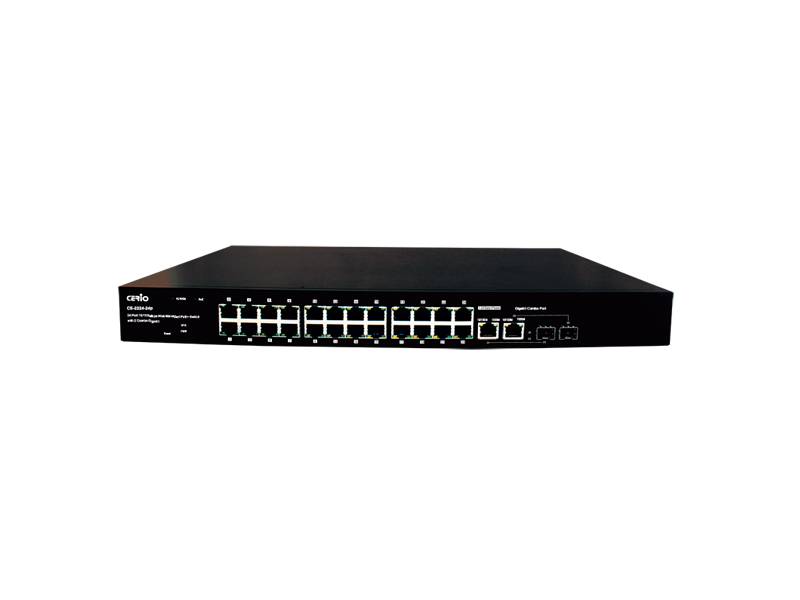

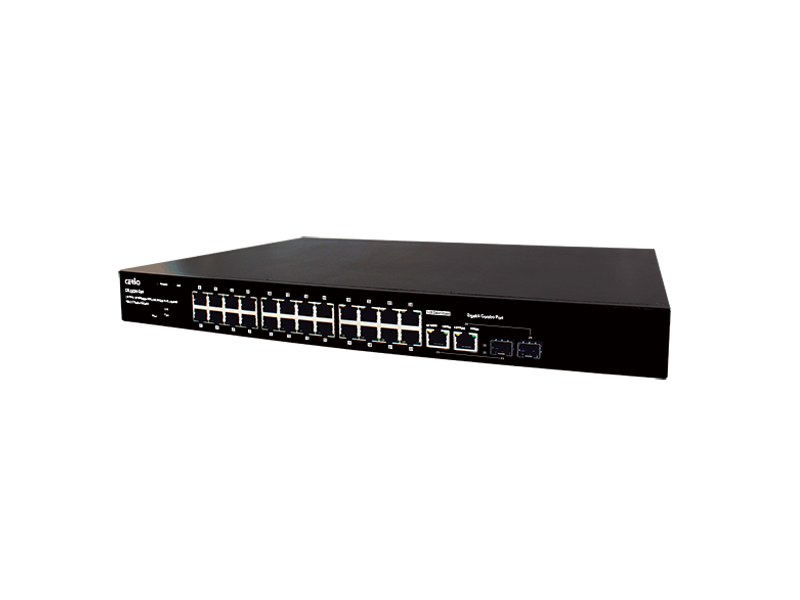

CS-2224-24P is a powerful high-performance 24 port PoE Fast Ethernet switch, supporting 2 combo Gigabit UTP/SFP uplink ports, and is compliant with POE+ IEEE 802.3at and 802.3af standards. This layer 2 Web Management switch includes a 400watt internal power supply and supports a 350 Watt PoE Power Budget and Remote on/off control of PoE power ports. CS-2224-24P layer 2 functions include Spanning Tree Protocol, IEEE802.1Q Tag/Port Based VLAN functions, IEEE802.1p-based/Port-based QoS bandwidth control, and Loop detection, and much more. This device can solve the limitation of the power outlet locations and offer the system relocation convenience
CERIO’s CS-2224-24P PoE+ Switch is designed for office deployment and can be upgraded to 1U” chassis for server room installation. CS-2224-24P is ideal for micro-segmenting large network into smaller networks, connecting subnets for improved performance, and enabling the bandwidth demanded for multimedia and imaging applications. Network administrators can easily connect Wireless AP, VoIP phones, and IP Cameras to this switch for convenient power and data transmission. Over current protection and circuit shorting protection are also supported to ensure product safety. This high power device provides easy installation, avoids limitations of power outlet locations, and offers a simple solution for system relocation.

Highlight Features

• Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX IEEE-802.3af PoE,IEEE802.3at POE+.
• 24port 10/100Mbps TX Auto-Negotiation Ethernet Switch , Have 24 Port PSE/ PoE function, compliant with IEEE-802.3af class3 /class2/class1 and IEEE802.3at.
• Supports 2 combo Gigabit UTP/SFP uplink ports and IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX.
• Supports PoE Green Power Energy Saving function to automatically detect connected devices and smartly direct necessary output wattage to only those ports to achieve green power saving.
• Supports power of up to 30Watt/15.4Watt/7.5Watt/4Watt for each PSE/PoE port.

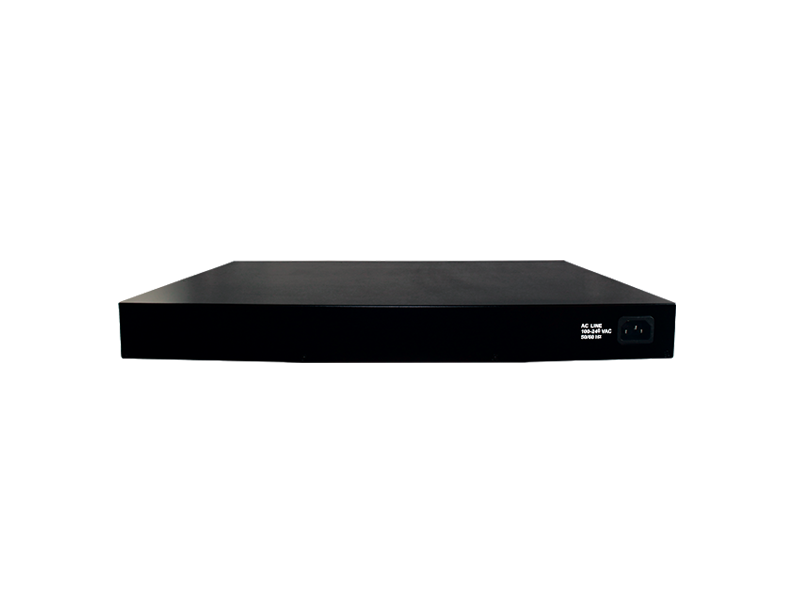

• Internal 400 Watt power supply supports a maximum PoE power budget of 350 Watt.
• Supports remote power control of PoE powered devices (PD), allowing by internet web on/off/restart control and supports monitoring of individual port PoE consumption (wattage).
• Supports PoE Control with scheduling capabilities and port-based control.
• Full/Half-Duplex capability on each TX port , Auto-learning networking configurations.
• Supports Store & Forward architecture and performs forwarding and filtering.
• Supports flow control: back pressure for Half-duplex and IEEE 802.3x for Full-duplex mode.
• Supports store & forward.
• Non-blocking & Non-head-of-line blocking full-wire speed forwarding.
• Supports TP interface Auto MDIX function for auto TX/RX swap.
• Provides 9K Jumbo frames to improve network utilization of a large file transfers.
• Supports up to 4K MAC addresses.
• Up to 2.75Mb Packet buffer.
• VLAN and IEEE802.1Q tag-base VLAN based on ports & VIDs; add/remove/modify tag.
• IEEE802.3ad Link Aggregation Port trunking (up to 3 groups and Max. 4 ports in each group).
• Provides IGMP v1/v2 snooping function.
• Supports Class Quality of service ( COS ), port- based, 802.1q priority tag based, IP TOS based, TCP/UDP port bases.
• Supports DHCP Relay Agent.
• Supports bandwidth control.
• Supports port mirroring and Spanning Tree(STP) and Rapid spanning Tree Protocol(RSTP)functions.
• Per port MAC address base filtering , and TCP/UDP network protocol filtering.
• Supports file backup and recovery.
• Supports Simple Network Management Protocol (SNMPv1/SNMP v2c) Web-based management interface.
