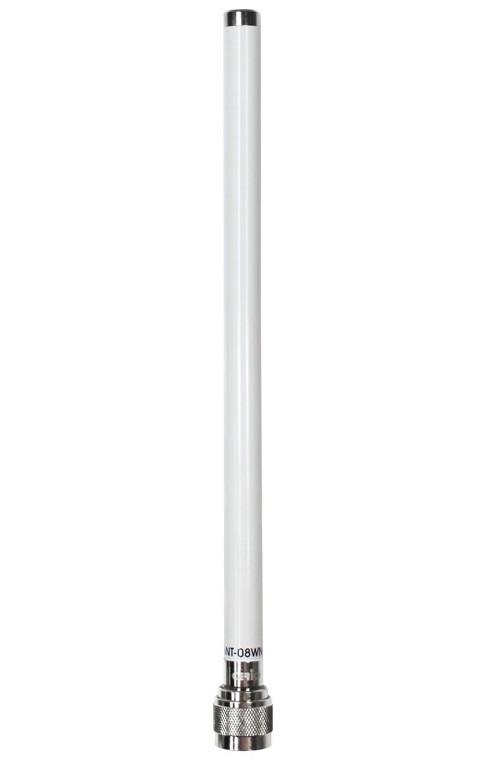

ANT-0608WN-S

2.4Ghz / 5Ghz Outdoor thin type Omni 6dBi / 8dBi Dual Band Plug Antenna

The ANT-0608WN-S outdoor Dual Band 2.4Ghz / 5Ghz Omni directional 6 / 8dBi Antenna is the perfect solution for extending the range and increasing the signal strength of an outdoor wireless network. ANT-0608WN-S provides a 22? range E Plane coverage for point to point and point to multi -point application.

The ANT-0608WN-S supporting 2.4Ghz / 5Ghz and provides superb performance in IEEE 802.11b/g/n WiFi, Integrated N-Plug(male) connector simple connect to your outdoor device. The materials are consider good of water tightness of characteristic, and the products all pass a strict test , satisfy professional user for product need.

All materials are all to consider good of water tightness and prevention rust of characteristic, and the products all pass a strict test, satisfy professional user for product need.

ANT-0608WN-S is outdoor Dual Band 2.4Ghz / 5Ghz Omni directional 6 / 8dBi Antenna , is the perfect solution to extend the range and increase the signal strength of our outdoor wireless network. provide 22˚ range E Plane coverage for point to point and point to multi -point application.

Highlight Features
  • High gain 2.4GHz : 6dBi / 5Ghz : 8dBi.

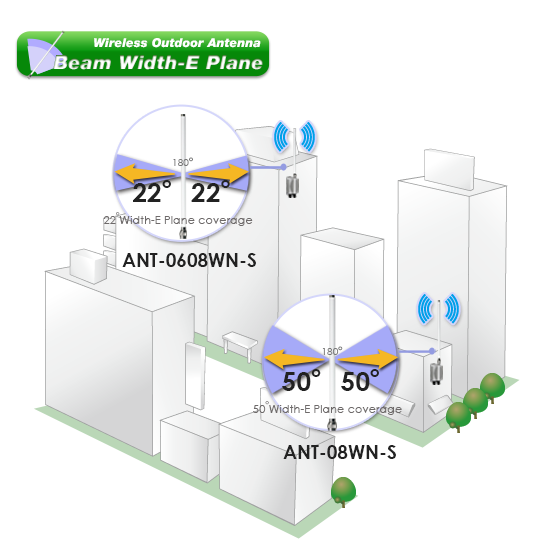

  • 22˚ Width-E Plane coverage.
  • High performance.
  • Fiberglass material.
  • Light-weight.
  • Waterproof design.
  • Simple and easy installation.
  • N-Plug(male) connector.

Size：243 * 17 (L *W) mm 13mm Diameter (max)

Weight：67g ± 0.5g

Specifications
Antenna Type Indoor / Outdoor Omni Antenna
Frequency Range 2.4 ~ 2.5GHz ，5.1 ~ 5.7Ghz  Dual Band
Network Specification 2.4Ghz / 5Ghz  Network IEEE 802.11ac/a/an/bgn MIMO
Gain 2.4Ghz : 6dBi  / 5Ghz : 8dBi
V.S.W.R < 1.5
Beam Width-H Plane 360˚
Beam Width-E Plane 22˚
Polarization Vertical (Linear)
Input Impedance 50 Ohms
Connector N-Type Male (Plug)
Rated Wind Velocity 150Km / Hour
Operation Temperature -20˚C – + 70˚C
Storage Temperature -30˚C – + 80˚C
Humidity 95% maximum (non-condensing)
Product Dimension 243 * 17 (H *W) mm    13mm Diameter (max)
Weight 67g ± 0.5g
Production Location TW Only
Package Content
ANT-0608WN-S   Antenna x1
Quick Installation Guide Booklet x1
Warranty Card x1
