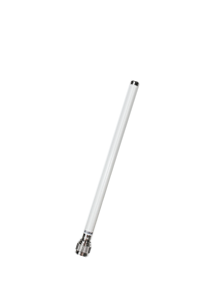

ANT-08WN-S
2.4Ghz Outdoor thin type Omni 8dBi Plug Antenna
The CERIO ANT-08WN-S is the perfect solution for extending the range and increasing the signal strength of an outdoor wireless network. ANT-08WN-S provides a 38˚ range E Plane coverage for point to point and point to multi -point application.
The CERIO ANT-08WN-S is the perfect solution for extending the range and increasing the signal strength of an outdoor wireless network. ANT-08WN-S provides a 38˚ range E Plane coverage for point to point and point to multi -point application.
The CERIO ANT-08WN-S is the perfect solution for extending the range and increasing the signal strength of an outdoor wireless network. ANT-08WN-S provides a 38˚ range E Plane coverage for point to point and point to multi -point application.
Features
- High Gain: 8dBi

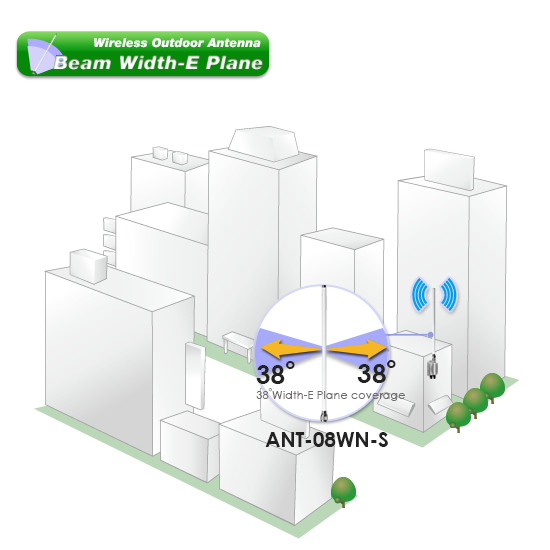

- 38˚ Width-E Plane coverage
- High performance for Multi-point Applications
- Fiberglass material
- Light-weight
- Waterproof design

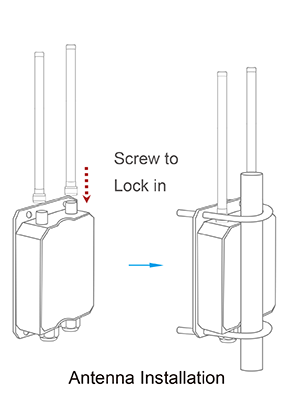

- Simple and easy installation
- N-Plug(male) connector

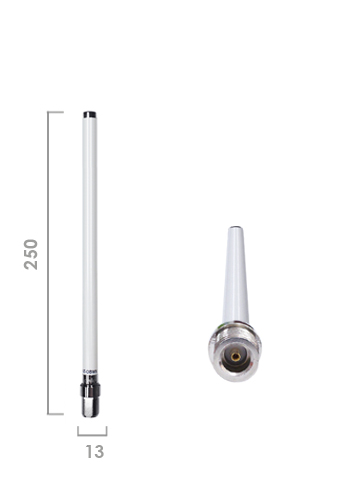

Size：262 * 13 (L *W) mm 13mm Diameter (max)
Weight：64.5g
| Specifications | |
| Antenna Type | Indoor / Outdoor Omni Antenna |
| Frequency Range | 2.4 ~ 2.5GHz |
| Network Specification | Wireless 2.4Ghz Network IEEE 802.11n , IEEE 802.11b/g |
| Gain | 8 dBi |
| V.S.W.R | < 1.5 |
| Beam Width-H Plane | 360˚ |
| Beam Width-E Plane | 38˚ |
| Polarization | Vertical (Linear) |
| Connector | 50 Ohms |
| Form Factor | N-Type Male |
| Rated Wind Velocity | 150Km / Hour |
| Operation Temperature | -20˚C – + 70˚C |
| Storage Temperature | -30˚C – + 80˚C |
| Humidity | 95% maximum (non-condensing) |
| Product Dimension | 262 * 13 (L *W) mm 13mm Diameter (max) |
| Weight | 64.5g |
| Package Content | |
| ANT-08WN-S Antenna Main Unit | x1 |
| Quick Installation Guide Booklet | x1 |
| Warranty Card | x1 |
