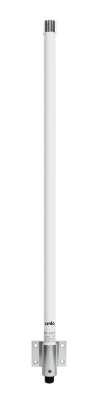

ANT-15AN

5GHz Outdoor Omni 15dBi Pole / Wall Mount Antenna

The CERIO ANT-15AN is the perfect solution for extending the range and increasing the signal strength of an outdoor wireless network.

The CERIO ANT-15AN is the perfect solution for extending the range and increasing the signal strength of an outdoor wireless network. ANT-15AN provides a 7˚ range E Plane coverage for point to point and point to multi -point long distance application. The ANT-15AN supports 5.1 to 5.9 GHz and provides superb performance in IEEE 802.11a/n, IEEE 802.11a WiMAX Wi-Fi. All materials are considered good in water tightness and prevention of rust characteristics. All CERIO products pass a strict test, and satisfy professional user product needs.

Highlight Features

  • High gain: 15dBi.
  • 7˚ Width-E Plane coverage.
  • High performance.
  • Fiberglass material.
  • Light-weight.
  • Waterproof design.
  • Simple and easy installation.
  • Provide Pole Mount function.

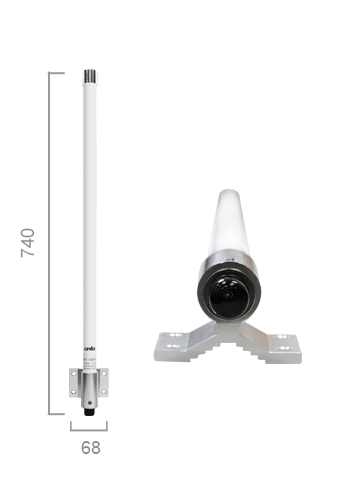

Size：740 * 68 (L *W) mm 26mm Diameter (max)

Weight：440g

Specifications
Antenna Type Outdoor Omni Antenna
Frequency Range  5.1 ~ 5.9GHz
Network Specification  Wireless 5Ghz Network IEEE 802.11n , IEEE 802.11a
Gain 15 dBi
V.S.W.R < 1.5
Beam Width-H Plane   360˚
Beam Width-E Plane   7˚
Polarization Vertical (Linear)
Input Impedance 50 Ohms
Connector N-Type Female
Form Factor  Pole Mount ( U-Clamps )
Operation Temperature   -50˚C – + 85˚C
Storage Temperature   -50˚C – + 85˚C
Humidity 5~90% maximum (non-condensing)
Product Dimension  740* 68 (L *W) mm ,  24mm Diameter (max)
Weight 440g
Production Location TW Only
Package Content
ANT-15AN Antenna Main Unit x1
Pole Mount kit x1
Quick Installation Guide Booklet x1
Warranty Card x1
