ANT-23AD

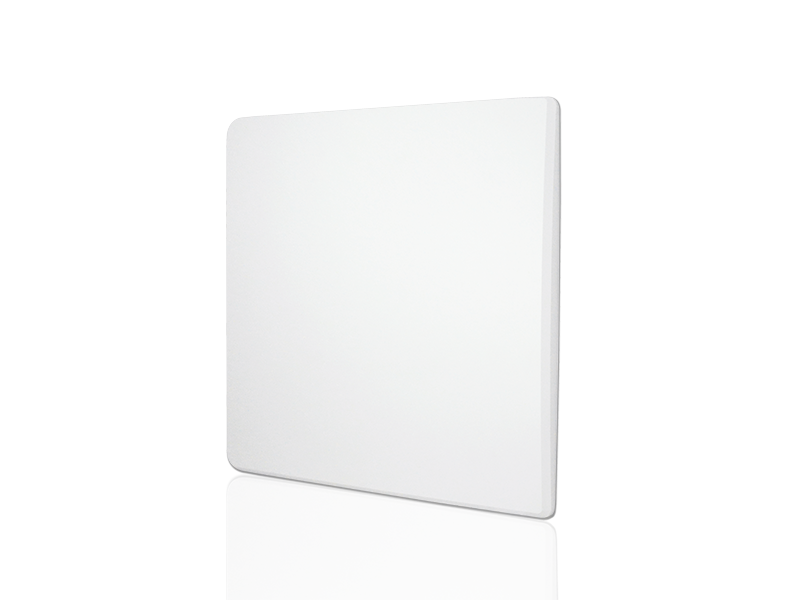

5GHz 2×2 Outdoor Directional 23dBi with RF Cables Panel Antenna
ANT-23AD 5GHz 2×2 Outdoor Directional 23dBi with RF Cables Panel Antenna provides 10˚ for H Plane and 10˚ E Plane long distance coverage for point to point application. The ANT-23AD supports 5.1 to 5.9 GHz and provides superb performance in IEEE 802.11a/an/ac/ax Wi-Fi environment. ANT-23AD supports pole and wall mounting installation. All materials are considered good in water tightness and prevention of rust characteristics. All CERIO products pass a strict test, and satisfy professional user product needs.
ANT-23AD 5GHz 2×2 Outdoor Directional 23dBi with RF Cables Panel Antenna provides 10˚ for H Plane and 10˚ E Plane long distance coverage for point to point application. The ANT-23AD supports 5.1 to 5.9 GHz and provides superb performance in IEEE 802.11a/an/ac/ax Wi-Fi environment. ANT-23AD supports pole and wall mounting installation. All materials are considered good in water tightness and prevention of rust characteristics. All CERIO products pass a strict test, and satisfy professional user product needs.
The ANT-23AD 5GHz 2×2 outdoor directional Dual Polarization Panel Antenna provides polarized dualsignal characteristics, allowing multiple antenna applications for 11ac/ax 2T2R MIMO. The user only uses one set of ANT-23AD Dual Polarization antenna with 2 sets of SMA connectors for connection with NFCNSP-1M low-attenuation RF cables to complete 11ac 2T2R MIMO applications that require multiple antennas. The perfect solution for faster, longer distances with 11ac 2T2R MIMO multi-radio reception and wireless transmission.
Highlight Features
- Supports 5Ghz IEEE 802.11a/an/ac.
- High Gain: 23dBi.
- 10˚ Width-E Plane and 10˚ Width-E Plane coverage.
- High performance.
- Light-weight and easy installation.
- IP67 Waterproof design.
- 0-45˚ Up and 0-38˚ Down adjustable design Supports two SMA (Female) connectors.
- Supports pole & wall mounting.
- Bundle with two RF cable with a waterproof cap and adjustable pole & wall mounting kit.

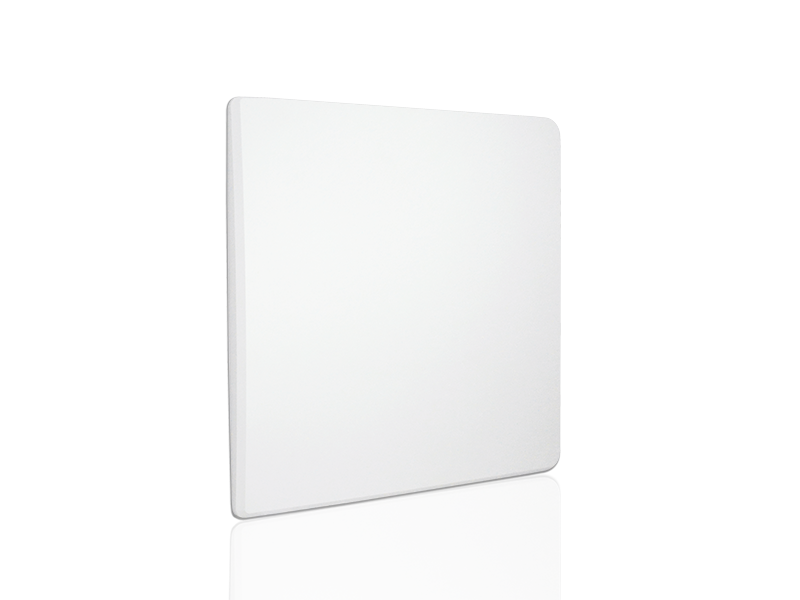

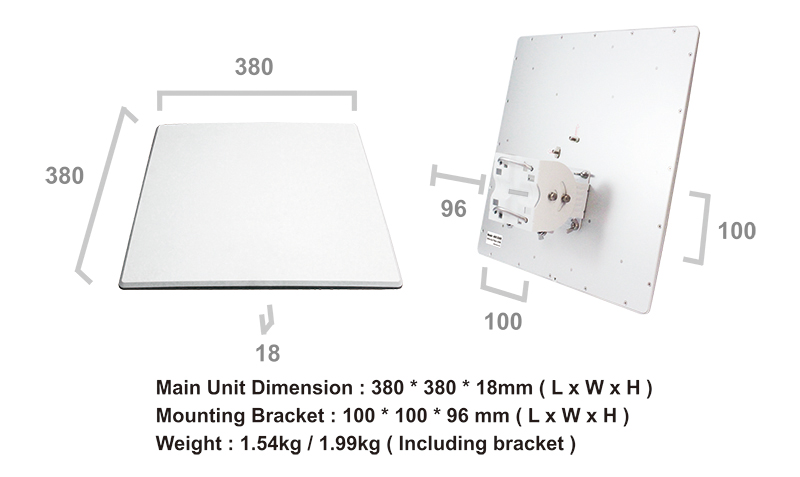

Hardware Overview / Dimension

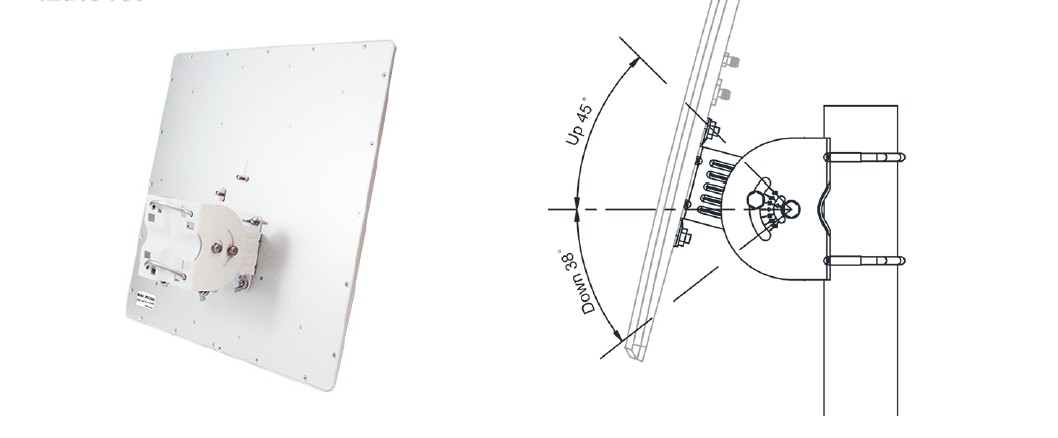

Adjustable Pole Mounting Installation Kit
Pole Mounting

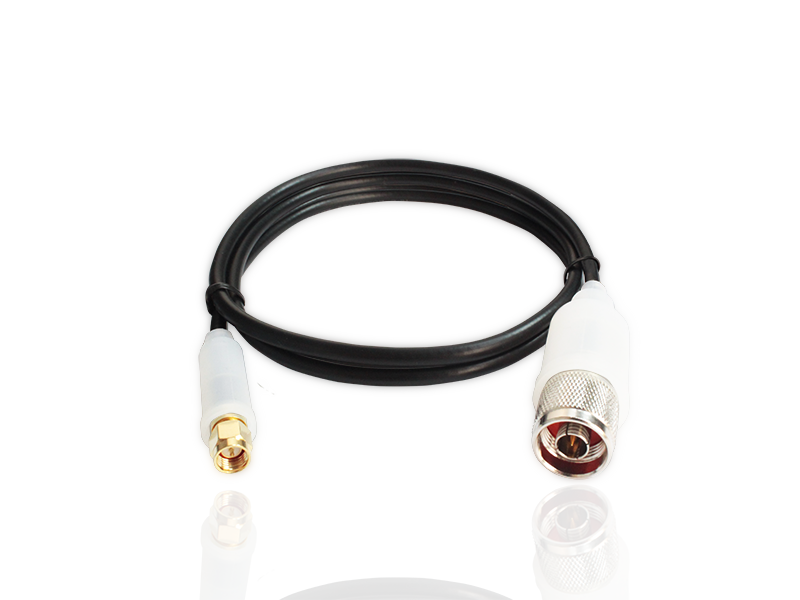

RF Cable Overview (NFC-NSP-1M)
Installation Application
| Specifications | |
| Antenna Type | Outdoor Directional Dual Polarization Panel Antenna |
| Frequency Range | 5.1 ~ 5.9GHz (11a/an/ac/ax) |
| Network Specification | Wireless 5Ghz Network IEEE 802.11a/an/ac MIMO |
| Antenna Gain | 23 dBi |
| V.S.W.R | < 2.0 |
| Beam Width-H Plane | 10˚ |
| Beam Width-E Plane | 10˚ |
| Polarization | Vertical & Horizontal (Linear) |
| Front-Back Ratio | ＞25 dB |
| Input Impedance | 50 Ohms |
| Connector | SMA Female |
| Form Factor | Supports Wall / Pole Mounting Installation ( Pole U and O-Clamps:Pole Range Ø40-Ø100mm ) ) |
| Adjustable range | 0-45˚ Up and 0-38 ˚ Down adjustable design |
| Rated Wind Velocity | 210Km / Hour |
| Operation Temperature | -50˚C – + 85˚C |
| Storage Temperature | -50˚C – + 85˚C |
| Humidity | 5~90% maximum (non-condensing) |
| IP Rating | IP67(waterproof level) |
| Product Dimension | Antenna: 380*380*18 (L x W x H)mm Mounting kit: 100*100*96 (L x W x H)mm |
| Weight | Antenna : 1.54Kg Antenna with mounting kit : 1.99kg |
| Production Location | TW Only |
| Package Contents | |
| ANT-23AD Main Unit | x1 |
| Adjustable Pole & Wall Mounting Kit | x1 |
| RF 1 Meter Cable (NFC-NSP-1M) | x2 |
| Quick Installation Guide | x1 |
| Warranty Card | x1 |
