FPOE-DXG-90W
The CERIO FPOE-DXG-90W is a Passive type 4Pair 90Watt Force Power Multi Gigabit Wide Temperature PoE++ Injector provides 5-speed (100M/1G/2.5G/5G/10G) Ethernet connection ability. The Maximum Ethernet transmission capacity up to 10Gbps. It provides DC 50-57V input voltage and a reliable hardware solution for demanding of IEEE 802.3bt Class8 90Watt PoE power level PoE/PD powered devices. It provides entry-level applications, high flexibility and increased expansion capabilities, greatly simplifying the wiring process and expense. It can meet the current and future needs for ultra-high 10Gbps speed and high-power PD network equipment. It provides Industrial grad durable and reliable metal casing and wide temperature (-40° ~ 75° C) design, also supports wall-mounting installation, which can meet high-standard industrial environment network construction requirements.

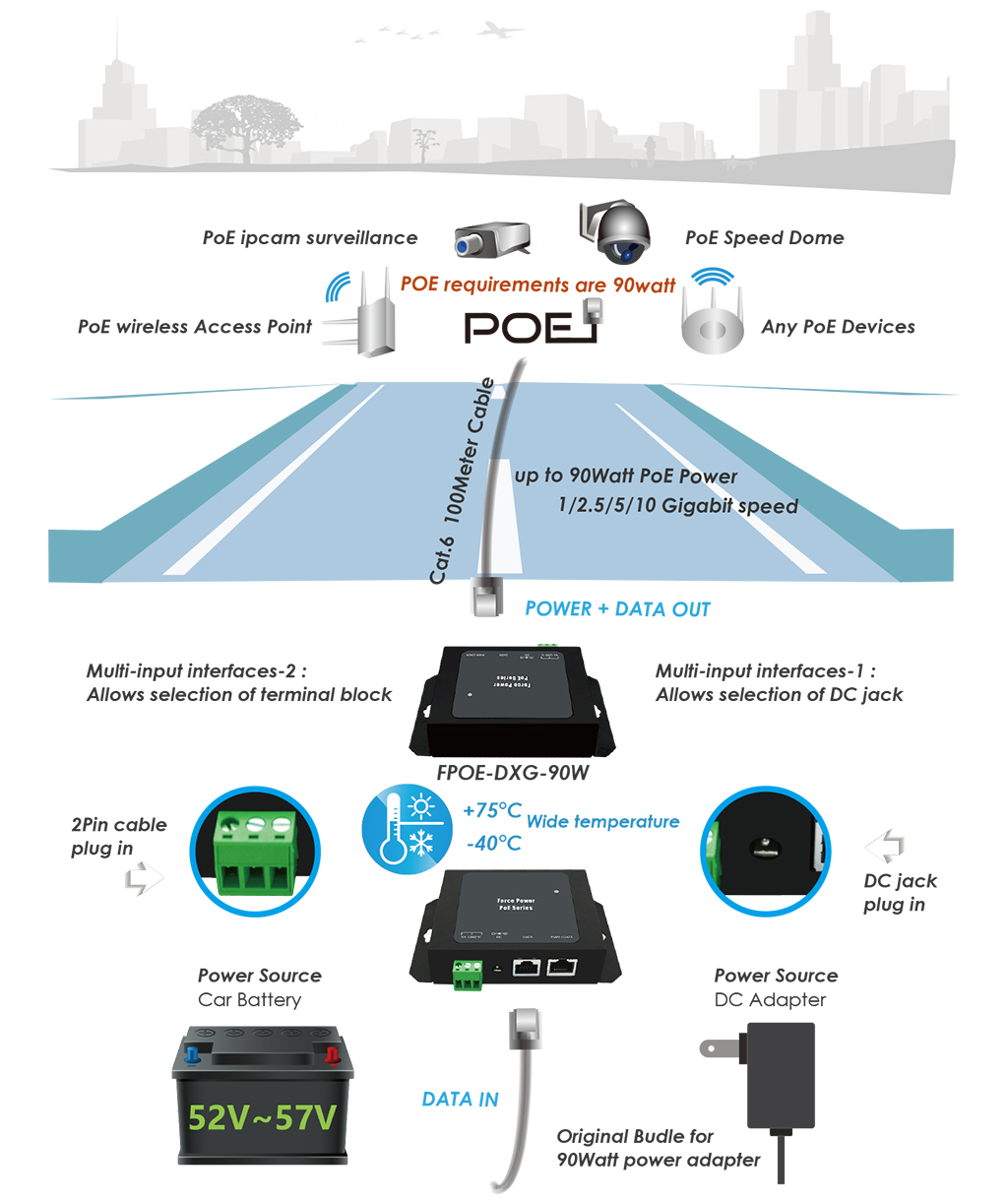

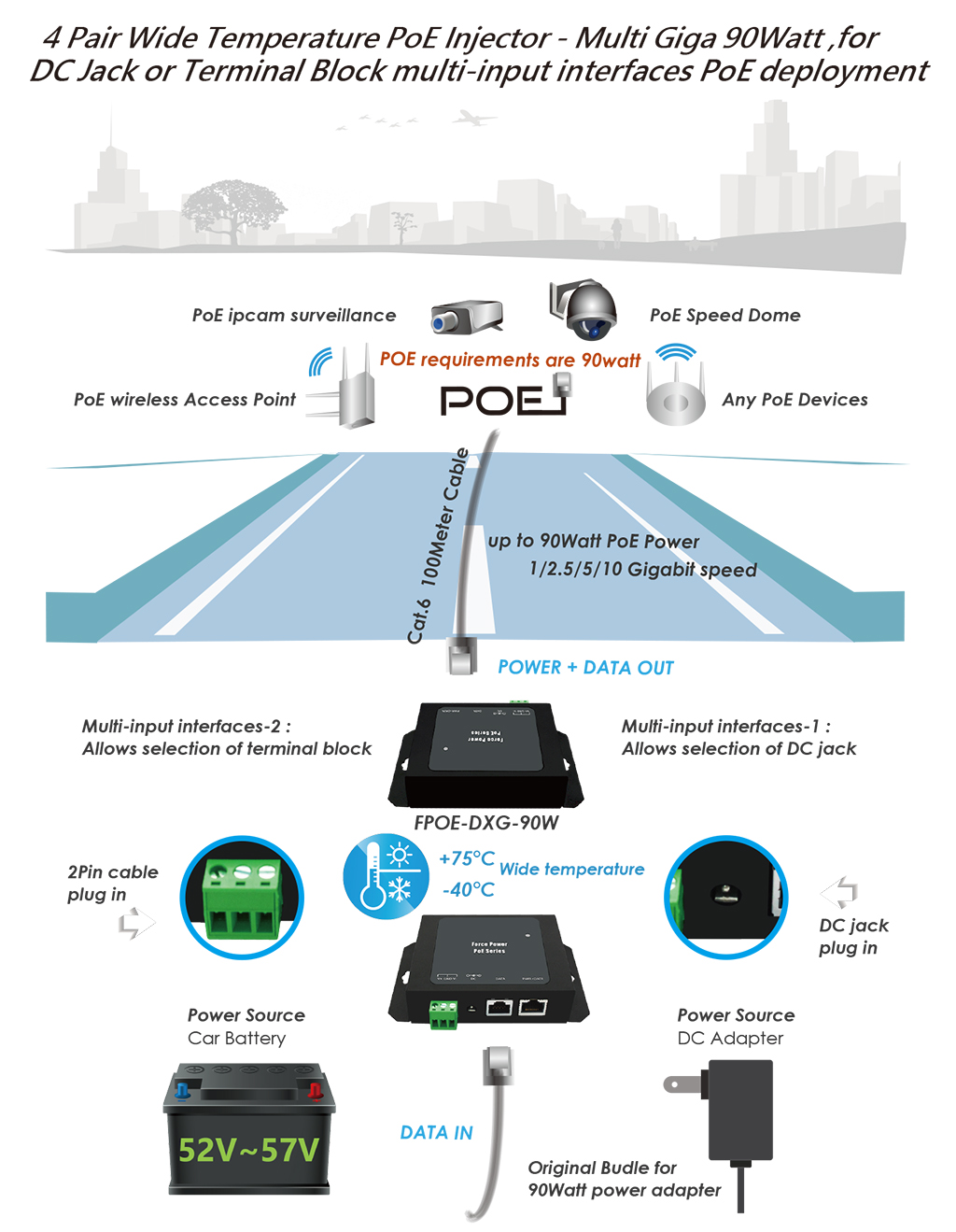

POE vs. Deployment Applications
Highlight Features
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5G/5G BASE-T, IEEE 802.3an 10GBASE-T standards.
- Supports 5-speed (100M/1G/2.5G/5G/10G) Ethernet connection ability.
- Supports PoE PSE/PD function and provides 802.3bt PoE Class8 and backward power level for PD device.
- Provides Force Power PoE++ output ability, and low cable-loss which can maintain 90Watt PoE power up to 100 meters distance.
- Provide Screw Terminal Block and DC In both Power System. User can select either one to supply power.
- Supports -40° ~ 75° C wide temperature design which can withstand various high and low temperature environmental applications.
- Provides a durable and reliable metal housing design.
- Over Current Protection & Short-circuit Protection.
- Supports desktop, wall mounting installation.
Functionality
FPOE-DXG-90W 4Pair 90Watt Force Power Multi Gigabit Wide Temperature PoE++ Injector with latest Force High Power Hardware design through 4Pair UTP Ethernet Cable to deliver both data and power to PD device, such as the latest WiFi 6 generation 802.11ax PoE WiFi AP, PoE IP Speed Dome PTZ CAM and surveillance system equipment provide a stable high power PoE powered solution. It is also suitable for the application of vehicle power system. Ex. fixed or mobile batteries, solar or power engine combined independent power systems etc. Supports -40° ~ 75° C wide range temperature design and plug-and-play connection provides a comprehensive and cost-effective solution for industrial environments, car market network planning.
Durable Metal Housing and Wide Temperature Design
CERIO FPOE-DXG-90W provides an industrial durable and high-reliability metal case design and supports a wide range temperature design of -40° ~ 75° C. It’s durable, reliable and supports wall mounting installation, which fully meets the application requirements in various environments. The wide temperature design allows the equipment to operate stably in extremely low and extremely high temperatures, making it the best helper for enterprises.
Long Distance Application
Cerio Force Power Multi Gigabit Wide Temperature PoE++ Injector can provide both data and power for distances of up to 100 meters (328 feet) from the power source (90Watt) and without cable-loss when using CAT 6a or up cabling.
ESD Protection
FPOE-DXG-90W supports ESD, Electro Static Discharge protection includes Over Voltage protection and Short Circuit Protection ensuring device safety.
Easy installation
Plug-and-Play, requires no configuration.

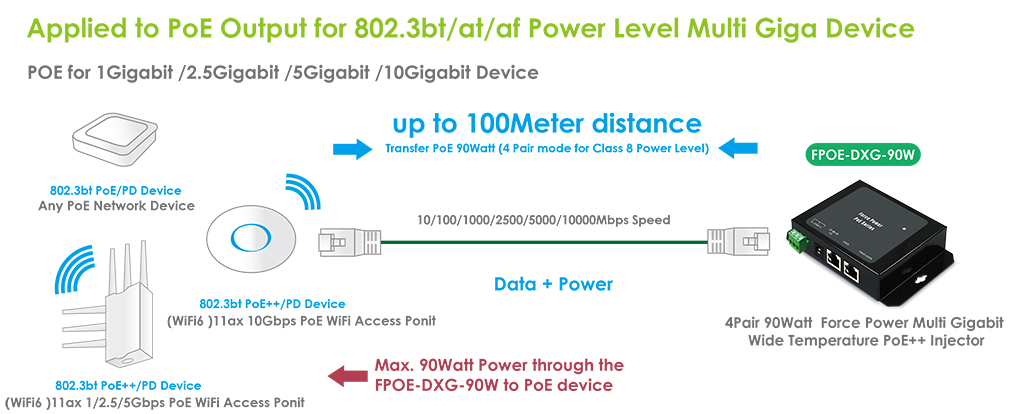

Product Application

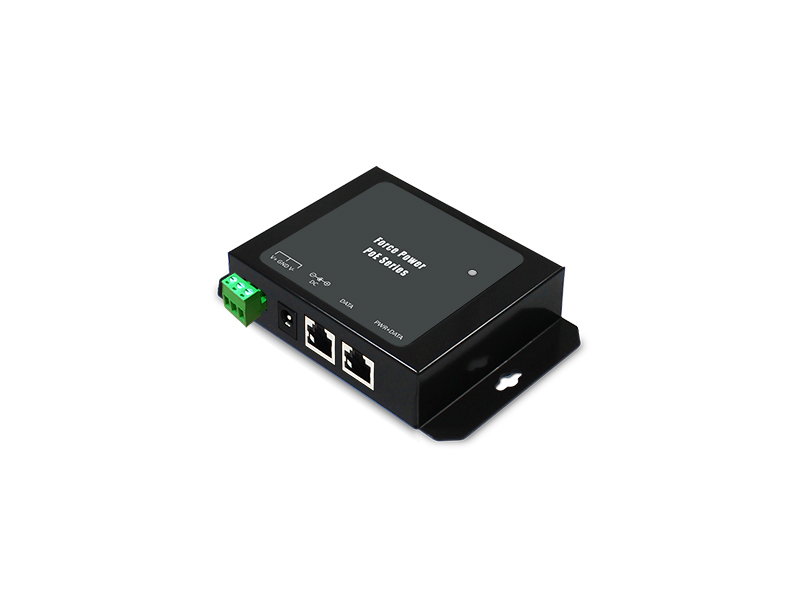

Hardware Overview
| Standards & Hardware Specifications | |
| Standard | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T |
| Network Media | 10BASE –T: UTP Cat. 3 or up 100BASE-TX: UTP Cat.5 or up 1G/2.5G/5GBASE-T : UTP Cat.5e or up 10GBASE-T : UTP Cat.6a or up |
| Data Transfer Rate | 10M/100M/1G/2.5G/5G/10Gbps (Half-duplex),
20M/200M/2G/5G/10G/20Gbps (Full-duplex) |
| PoE Type | Passive POE |
| Data PIN | PIN 1/2 , 3/6 & 4/5 , 7/8 |
| Power PIN | End-span (Type-A): PIN 1/2,3/6 Mid-span (Type-B): PIN 4/5,7/8 |
| Ethernet Connector | RJ-45 x1 : Power + Data
RJ-45 x1 : Data |
| Power Interface | Output: RJ45 Passive 802.3bt PoE Out Multi Input: DC In or Screw Terminal Block In (STB In) |
| ESD Protection | Supports ESD (Electro Static Discharge) Over Voltage protection and Short Circuit Protection |
| Environmental & Mechanical Characteristics | |
| Max Power Output | 4Pair for 90Watt |
| Power Requirement | 56V 90Watt External Power Supply |
| Input Voltage | 50 ~ 57Volt |
| Cable and Power Loss | @ 100Meter : Keep power source ability (90Watt) with Cat.6a or up Cable |
| LED | System LED: Power x1 |
| Operating Temperature | -40° to 75° C |
| Storage Temperature | -40° to 85° C |
| Operating Humidity | 5% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Dimension ( W x H x D ) | 130 x 82 x 27mm |
| Weight ( g ) | 229g (including Screw Terminal Block) |
| Form Factor | Desktop/Wall mounting installation |
| Case of material | Metal |
| Production Location | TW |
| Certifications | FCC ,CE, RoHs compatible |
| Package Contents | |
| FPOE-DXG Main Unit | x1 |
| 90Watt Power Adapter | x1 |
| Warranty Card | x1 |
