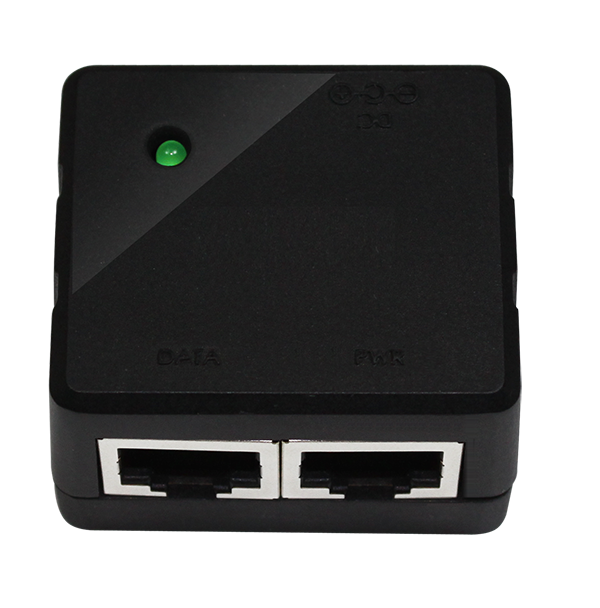

POE-PE03-24W



PoE Series – 24Watt 10/100M PoE Injector

CERIO’s POE-PE03-24W 10/100Mbps is IEEE802.3af POE compatible over PoE Midspan and supports up to 24Watt POE 48V output power supply. Simply connect the power source to the Adapter, and then use an Ethernet cable to connect the Adapter to the device. This conveniently provides both power and data to the powered device (PD).

CERIO’s POE-PE03-24W 10/100Mbps is IEEE802.3af POE compatible over PoE Midspan and supports up to 24Watt POE 48V output power supply. Simply connect the power source to the Adapter, and then use an Ethernet cable to connect the Adapter to the device. This conveniently provides both power and data to the powered device (PD).
For Ethernet connections, four pairs of Cat5 or Cat5E twisted pairs are used as the medium for transmission. The actual data transmission only takes up two pairs of wires (pairs 1-2 and 3-6). The PoE technology utilizes the remaining pairs (pairs 4-5 and 7-8) to transmit electricity.
POE-PE03GE-24W 10/100Mbps is a cost effective solution for deploying PoE Wireless Access Points, VOIP Phones, and PoE IP Surveillance in indoor or outdoor environments where the power sources are not readily available.

Features
  • Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX Ethernet standards
  • Supports PoE Powered Device (PD ) classification identify in accordance with Class 3 PoE 15.4Watt Power Levels
  • Bundles 48V/0.5A Power supply for maximum power capacity of 24Watts
  • Supports LED Diagnostic LED

Size：37 * 42 * 25 mm

Weight：22 g





Specifications
Data in PIN 1/2 & 3/6
Power PIN 4/5+ & 7/8

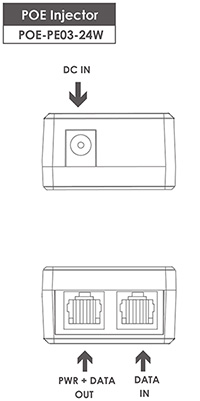

Port Data in:1 port RJ-45 connectors for 10/100BASE-TX
PWR+Data out: 1 port RJ-45 port for 10/100 Base-TX
Network Media 10BASE –T: UTP Cat. 3 or up
100BASE-TX: UTP Cat. 5 or up
Ethernet Data rate 10/100Mbps (Half-duplex)
20/200Mbps (Full-duplex)
POE 15.4Watts PoE & Max of 24Watts
Ethernet Cable  Up TIA/EIA 568 Cat.5
LED Indicators Power on x1
Power Requirement External power adapter :
48V DC/0.5A power supply for maximum output of 24Watts
Operating Temperature 0° to 40 ° C
Storage Temperature 0° to 50 ° C
Operating Humidity 10% to 80% non-condensing
Storage Humidity 5% to 90% non-condensing
Dimensions 37mm*42mm*25mm
Unit Weight 22g
Package Content
POE-PE03 Main Unit x1
Power Adapter Adaptor x1
Warranty Card x1
