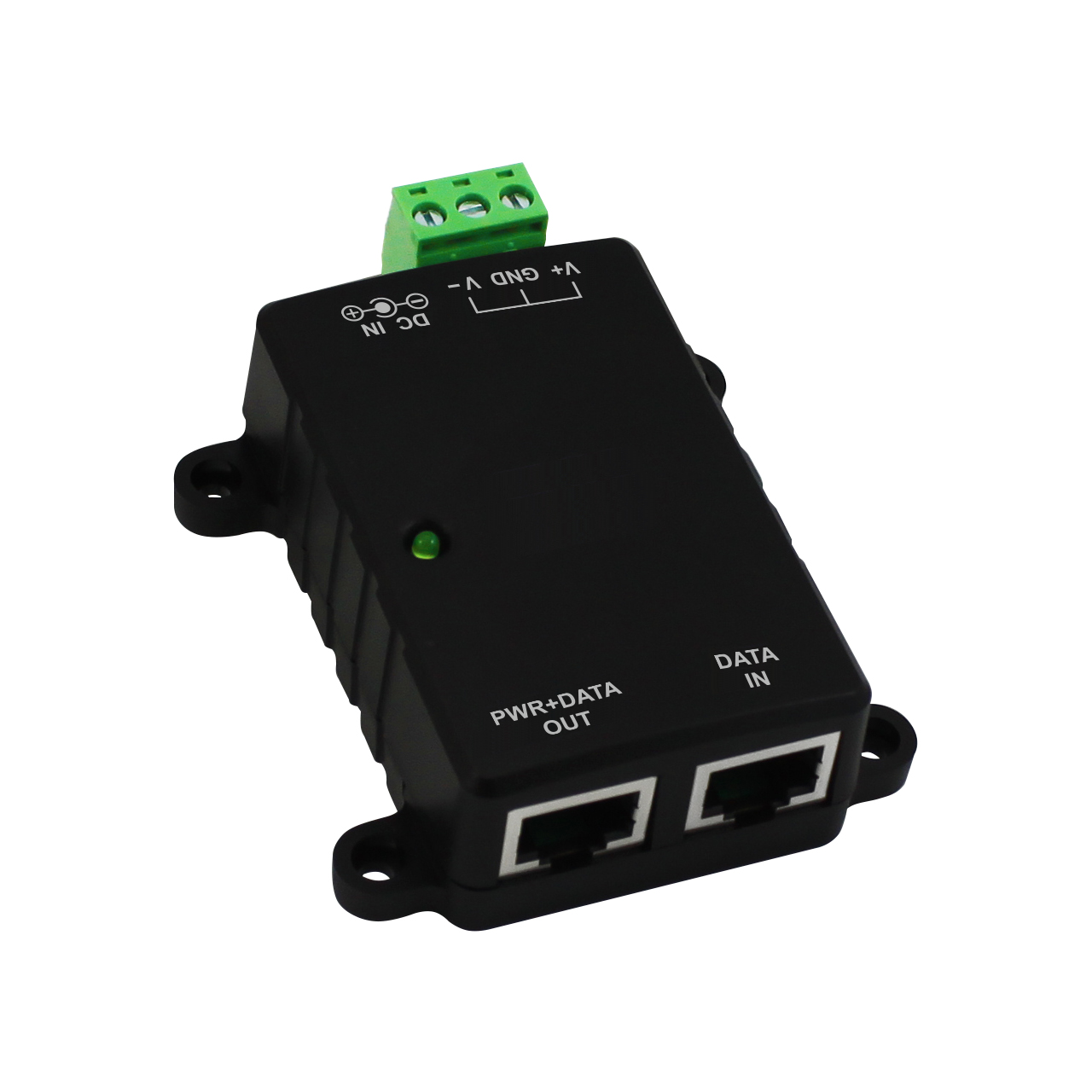

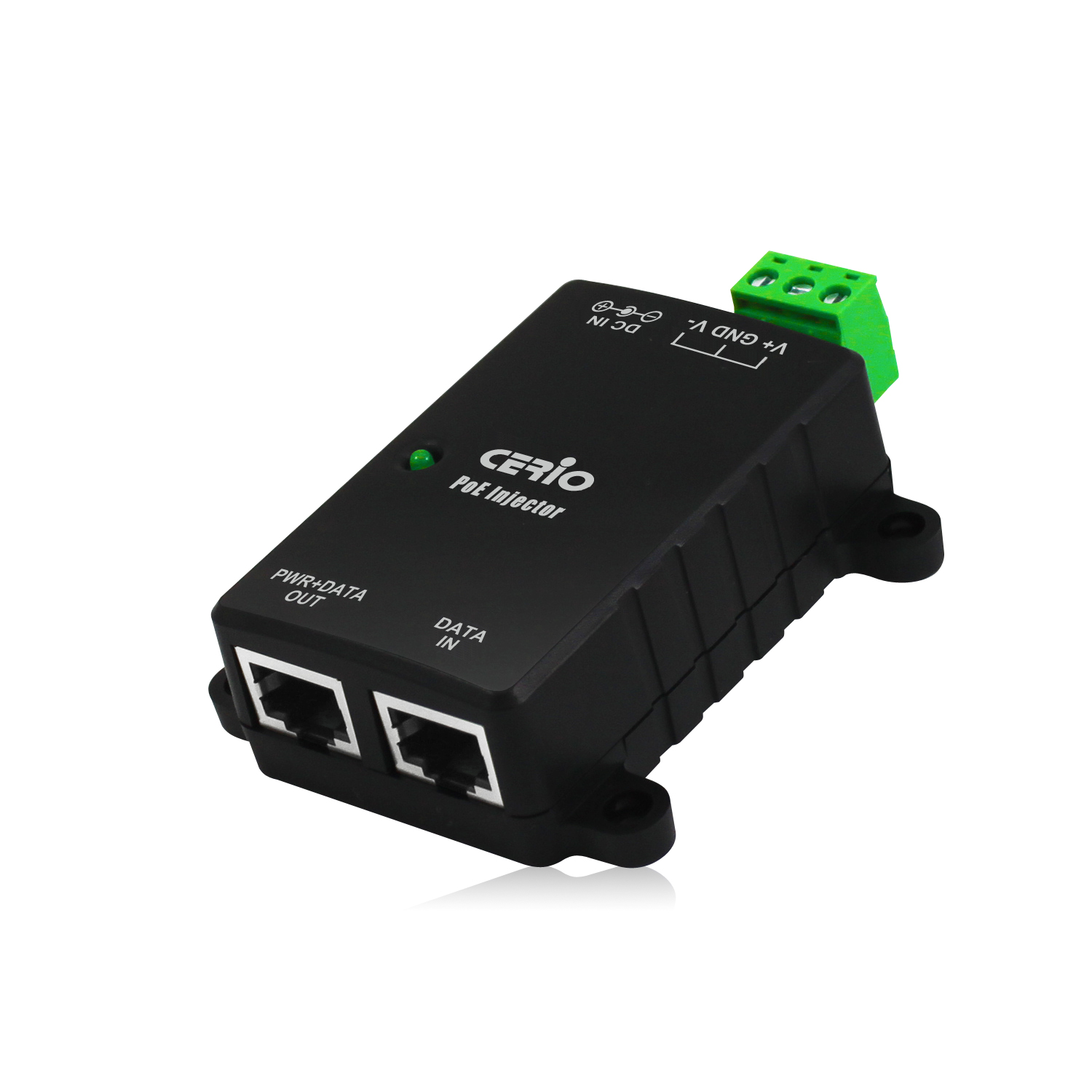

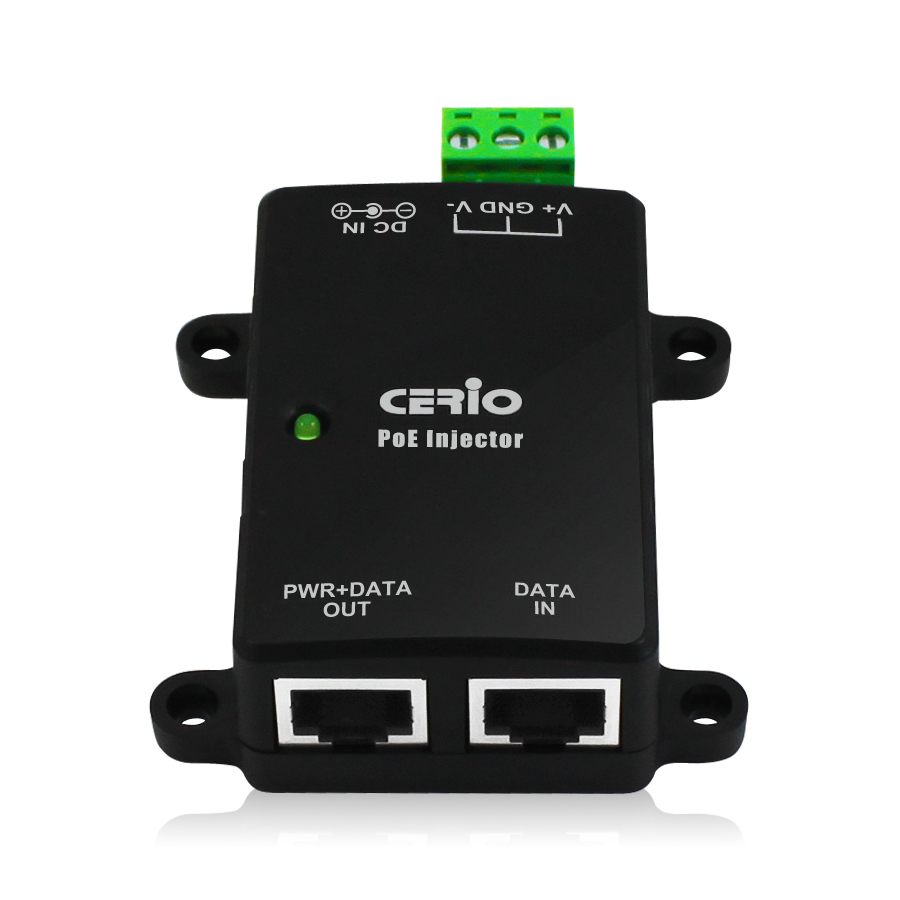

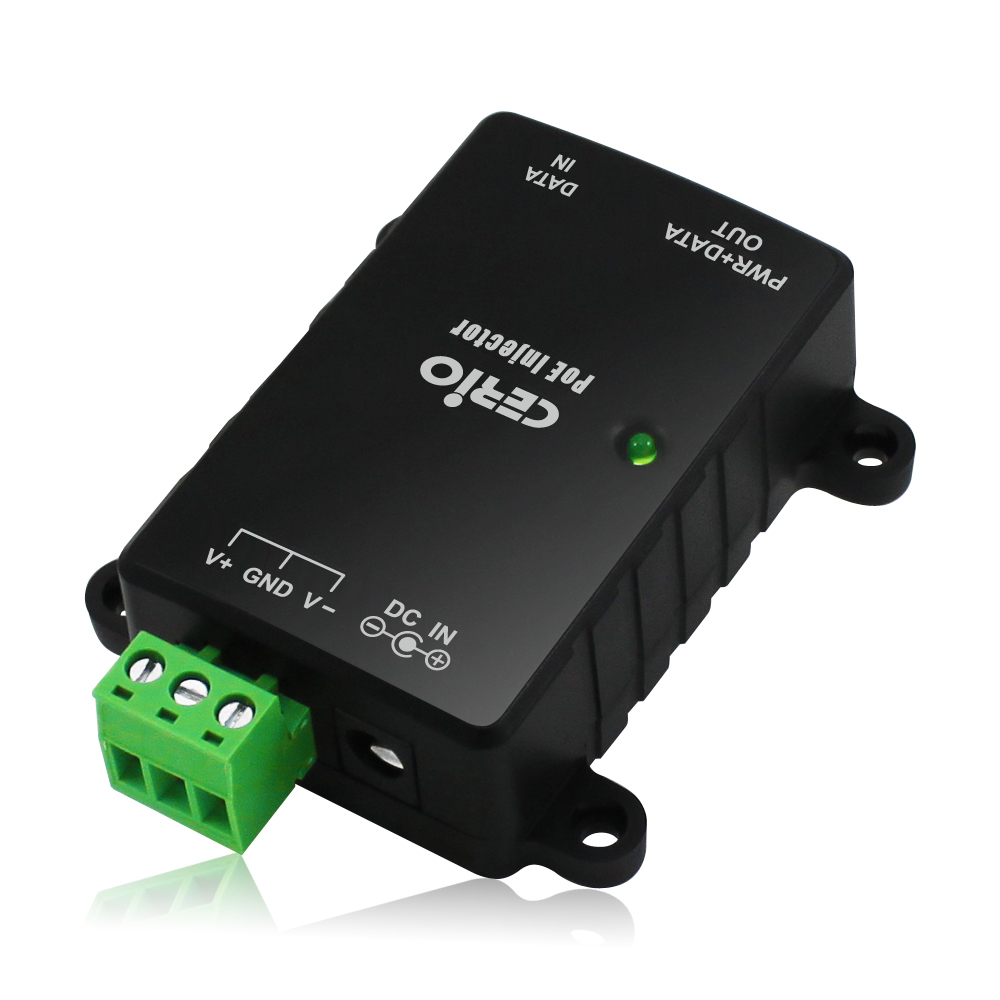

POE-S48G2
The POE-S48G2, IEEE 802.3af/at compatible, Power over Ethernet Injector provides DC 48V over Ethernet cables. It supports up to IEEE802.3af 15.4Watt POE (Class3 Standard) and IEEE802.3at 30 Watt POE+ (Class4 Standard) maximum output power. Unlike existing Power over Ethernet Injectors, the POE-S48G2 provides 10/100/1000Mbps Giga Ethernet connection ability.
Highlight Features
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,IEEE802.3ab 1000Base-T,IEEE-802.3af PoE , IEEE-802.3at PoE
- Max Power: 30Watt (IEEE 802.3at) POE+, for bundle 48V/83A Power supply
- Supports PoE Powered Device (PD ) classification identify
- Provide Screw Terminal Block for external Power and DC In both Power System.
- Over Current Protection
- Short-circuit Protection
Long Distance Application
Cerio POE Injector can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.
Functionality
POE-S48G2 greatly simplifies the wiring and deployment process and brings a great deal of convenience benefits to home, office, and industrial environments. The POE-S48G2 Power over Ethernet (POE) adapter is designed to supply operational power to wireless LAN devices such as PoE access point bridges, routers, and surveillance cameras. With Power over Ethernet devices installed, the system administrator only has to use a single RJ-45 Ethernet cable to carry both power and data to each device.
ESD Protection
POE-S48G2 supports ES, Electro Static Discharge protection includes Over Voltage protection and Short Circuit Protection ensuring device safety.
Additional Benefits
Some additional benefits of Cerio POE Injector include cost saving, convenience in network planning, and higher reliability.
Easy installation
Plug-and-Play, requires no configuration.
Product Application
Standards & Hardware Specifications
| Standard | IEEE802.3at Power over Ethernet Plus(POE+) IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE802.3af Power over Ethernet(POE) |
| Network Media | 10BASE –T: UTP Cat. 3 or up 100BASE-TX : UTP Cat. 5 or up1000BASE-T: UTP Cat. 5 or up |
| Data Transfer Rate | 10/100/1000Mbps (Half-duplex), 20/200/2000Mbps (Full-duplex) |
| PoE Type | Endspan / A-Type / (PIN 1/2&3/6) |
| Data PIN | PIN 1/2,3/6 & 4/5,7/8 |
| Power PIN | PIN 1/2, 3/6 (Power + Data Pin) |
| Screw Terminal Block | Removable 2-contact |
| ESD Protection | Over Voltage protection and Short Circuit Protection |
| Environmental & Mechanical Characteristics | |
| Max PoE Power | 30Watts per port |
| Power Connector(Interface) | ScDC-Jack: for bundle Power Supply or rew Terminal Block |
| Power Requirement | External Power Supply 48V DC / 0.83A |
| Input Voltage | 44-57 Volt802.3af/at PoE設備 或 24Volt (隨搭配電源變壓器) |
| LED | Power unit x1 : AC power in(Red) , General powered (Green) |
| Operating Temperature | 0° to 45° C |
| Storage Temperature | -40° to 70° C |
| Storage Humidity | 5% to 90% non-condensing |
| Dimension ( W x H x D ) | 80 x 68 x 24mm |
| Weight ( g ) | 51g |
| Form Factor | Wall mounting |
| Case of material | FCC ,CE, RoHs compatible |
| Package Contents | |
| POE-S48G2 Main Unit | x 1 |
| 30Watt Power Adapter | x 1 |
| Warranty Card | x 1 |
