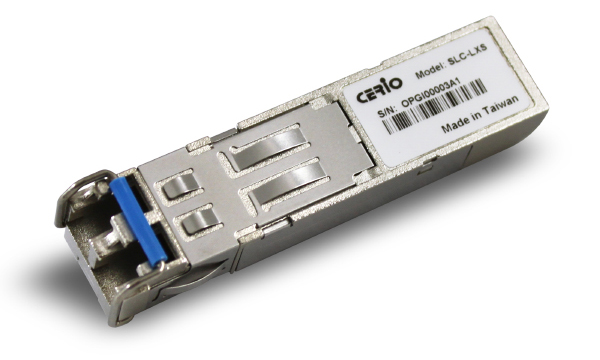

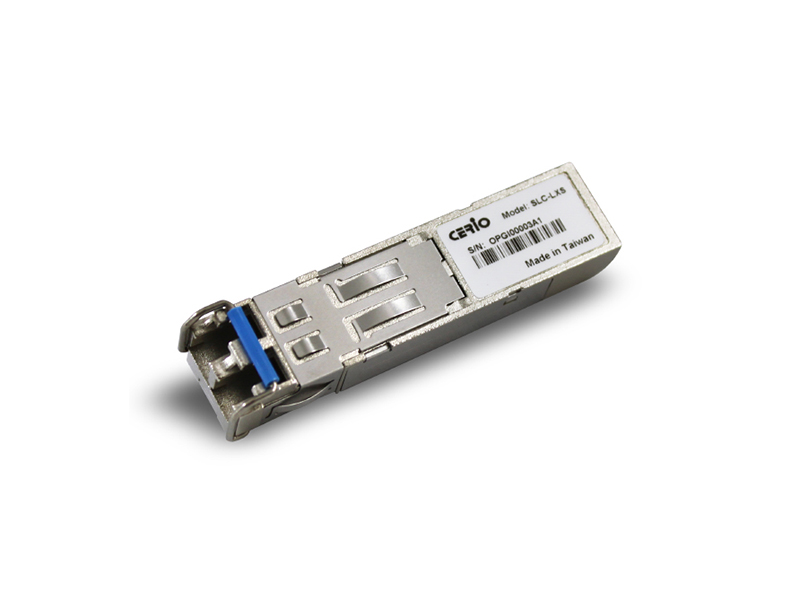

SLC-LXS
1000BASE-LX/LC Single-Mode Fiber SFP Module (10KM)
CERIO SLC-LXS 1000BASE-LX/LC Single-mode fiber SFP Module provides optical transceiver modules connect on switches SFP Slot ports, Pluggable (SFP module) transceivers with the LC connector, offers a Small Pluggable (SFP module) transceivers for single mode switch’s Gigabit SFP port to switch’s Gigabit SFP port interface or High speed for Gigabit SFP port file server applications.
CERIO SLC-LXS 1000BASE-LX/LC Single-mode fiber SFP Module provides optical transceiver modules connect on switches SFP Slot ports, Pluggable (SFP module) transceivers with the LC connector , offers a Small Pluggable (SFP module) transceivers for singlemode switch’s gigabit SFP port to switch’s gigabit SFP port interface or High speed for gigabit SFP port file server applications. The modules, which operate from a single +3.3V power supply, The Cerio’ SFP Transceivers SLC-LXS are short wavelength fiber optic transceiver modules for use in 1.25 Gb/s gigabit Ethernet and high-speed proprietary link applications. The transceivers send and receive pre-encoded data over a pair of 50µm or 62.5µm core multimode optical fibers. Cerio’s SLC-LXS compliant with IEEE802.3z Gigabit Ethernet and with Fiber Channel 100-SM-LC-L standard, The Cerio’ Gigabit Ethernet SFP LC Transceivers providing Fiber Channel and Ethernet connectivity, and satisfying a wide range of speed and under 10KM distance requirements. It will be your best choice.
 |
|---|
Highlight Features
- SFP Multi-Source Agreement(MSA) and IEEE802.3z Gigabit Ethernet standard compliance.
- Compliant EN 60825-1 / Class 1 laser product and with Fiber Channel 100-SM-LC-L standard.
- Support 1.25Gb/s High speed data Rate.
- Center Wavelengthsupport to 1310nm.
- Single power supply 3.3V.
- Up to 10KM fiber distance.
- Hot-pluggable remove and install module.
- Duplex LC connector.
- RoHS compliant.
| SLC-LXS | |
| Specifications | |
| Module Type | Single mode |
| Media Type | SMF type |
| Fiber distance | Max :10KM |
| Spectral Width (RMS) | Max: 2.5nm |
| Center Wavelength | 1310nm (FP) (1280~1340nm) /Light Source |
| Supply Voltage | 3.1 ~ 3.5V |
| Operating Current | Max : 400mA |
| Output Current | Max : 50mA |
| Connector | Duplex LC connector |
| Operating Temperature | -0°C ~ 70 °C |
| Storage Temperature | -40 °C ~85 °C |
| Operating Humidity | 100% Non-Condensing |
| Dimension ( W x H x D ) | 13.4 x 13.35 x 56.6 mm |
| Weight | 17g |
| Production Location | TW only |
| Package Content | |
| SLC-LXS Main Unit | x1 |
| Warranty Card | x1 |
