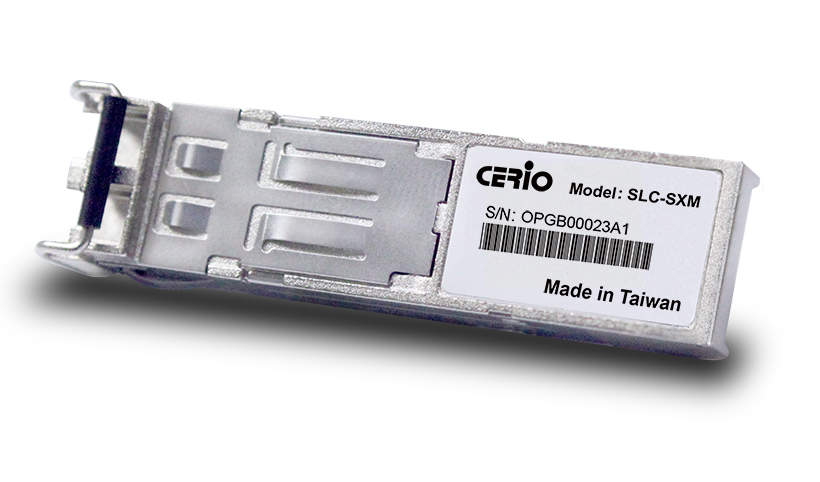

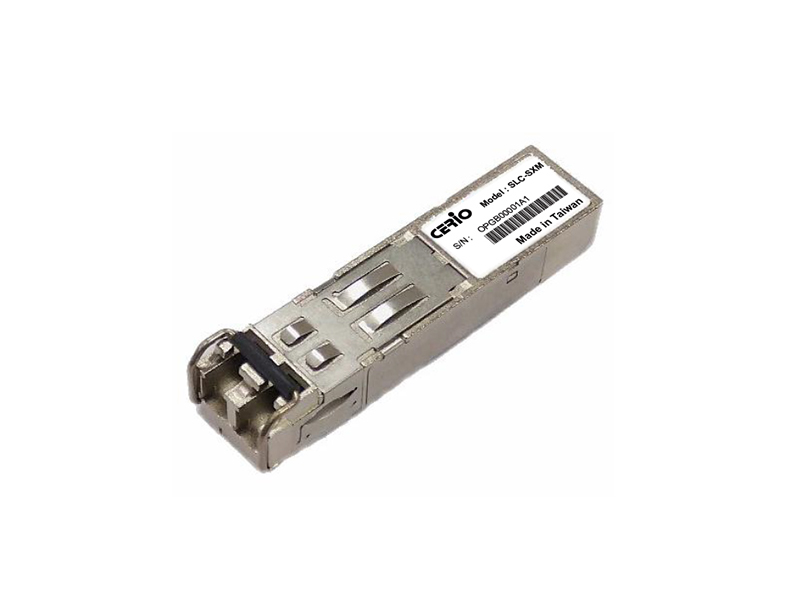

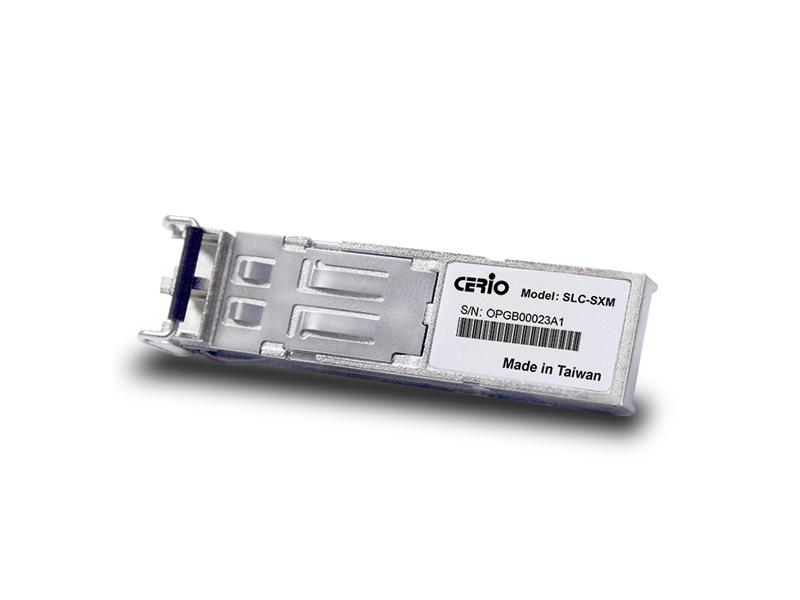

SLC-SXM

1000BASE-SX/LC Multi-Mode Fiber SFP Module (550M)

CERIO SLC-SXM 1000BASE-SX/LC Multi-mode fiber SFP Module provides optical transceiver modules connect on switches SFP Slot ports,Pluggable (SFP module) transceivers with the LC connector, offers a Small Pluggable(SFP module) transceivers for multimode switch’s gigabit SFP port to switch’s gigabit SFP port interface or High speed for gigabit SFP port file server applications.

CERIO SLC-SXM 1000BASE-SX/LC Multi-mode fiber SFP Module provides optical transceiver modules connect on switches SFP Slot ports, Pluggable (SFP module) transceivers with the LC connector , offers a Small Pluggable(SFP module) transceivers for multimode switch’s gigabit SFP port to switch’s gigabit SFP port interface or High speed for gigabit SFP port file server applications. The modules, which operate from a single +3.3V power supply, The Cerio’ SFP Transceivers SLC-SXM are short wavelength fiber optic transceiver modules for use in 1.25 Gb/s Gigabit Ethernet and high-speed proprietary link applications. The transceivers send and receive pre-encoded data over a pair of 50µm or 62.5µm core multimode optical fibers. Cerio’s SLC-SXM compliant with IEEE802.3z Gigabit Ethernet and with Fiber Channel 100-MS-SN-I and 100-M6-SN-I standard, The Cerio’ Gigabit Ethernet SFP LC Transceivers providing Fiber Channel and Ethernet connectivity, and satisfying a wide range of speed and under 550M distance requirements. It will be your best choice.

Highlight Features

  • SFP Multi-Source Agreement(MSA)and IEEE802.3z Gigabit Ethernet standard compliance.
  • Compliant with EN 60825-1 / Class 1 laser product and Fiber Channel 100-MS-SN-I and 100-M6-SN-I standard.
  • Support 1.25Gb/s High speed data Rate.
  • Center Wavelengthsupport to 850nm.
  • Single power supply 3.3V.
  • Up to 550M fiber distance.
  • Hot-pluggable remove and install module.
  • Duplex LC connector.
  • RoHS compliant.
SLC-SXM
Specifications
Module Type Multi mode
Media Type MMF type
Fiber distance Max : 550M
Spectral Width (RMS) Max: 0.85nm
Center Wavelength 850nm (VCSEL)(835~865nm) /Light Source
Supply Voltage 3.1 ~ 3.5V
Operating Current Max : 400mA
Output Current Max : 50mA
Connector LC connector x2
Operating Temperature -0°C ~ 70 °C
Storage Temperature -40 °C ~85 °C
Operating Humidity 100% Non-Condensing
Dimension ( W x H x D ) 13.4 x 13.35 x 56.6 mm
Weight 15g
Production Location TW only
Package Content
SLC-SXM   Main Unit x1
Warranty Card x1
